Yokogawa EJX110A-EMS4G-919EB/KU21 High Performance Differential Pressure Transmitter 4-20mA
Overview
The Yokogawa EJX110A-EMS4G-919EB/KU21 is a premium-performance differential pressure (DP) transmitter built on the proven DPharp® silicon resonant sensor platform. Delivering ±0.04 % reference accuracy, 100 ms response time and multi-sensing capabilities, this model excels in flow, level and pressure applications across oil & gas, chemical, power and pharmaceutical industries.
Key Features
• Best-in-Class Accuracy – ±0.04 % of span with ±0.1 % per 10-year stability reduces calibration cost.
• Multi-Variable Output – Simultaneous DP, static pressure (SP) and process temperature via HART 7 / FOUNDATION Fieldbus.
• SIL2 Certified – IEC 61508-compliant for safety loops; FMEDA data available for SIL verification.
• Rugged Design – 15-year MTBF; IP66/IP67 and NEMA 4X enclosure withstands –40 °C to +85 °C.
• Advanced Diagnostics – Plugged-impulse-line detection, heat-map trending and optional spectral signal analysis.
• Universal Mounting – ½-inch NPT, DIN 19213 or coplanar flanges; integral or remote LCD display.
Technical Specifications
• Model: EJX110A-EMS4G-919EB/KU21
• Span Limits: 0.1 – 210 kPa (0.4 – 840 inH₂O)
• Static Pressure Rating: 0 – 16 MPa (2 320 psi)
• Output: 4–20 mA with HART 7, optional FF or Profibus-PA
• Materials: 316 SST wetted parts, Hastelloy C-276 diaphragm
• Electrical Entry: M20 × 1.5 (EMS4G) + KU21 weatherproof cable gland
• Approvals: ATEX, IECEx, FM, CSA, NEPSI, INMETRO, EAC
Typical Applications
• Orifice-plate flow measurement in custody-transfer skids
• Level monitoring of pressurized vessels with wet-leg installation
• Filter differential pressure alarms in utility plants
• Interface level measurement in distillation columns

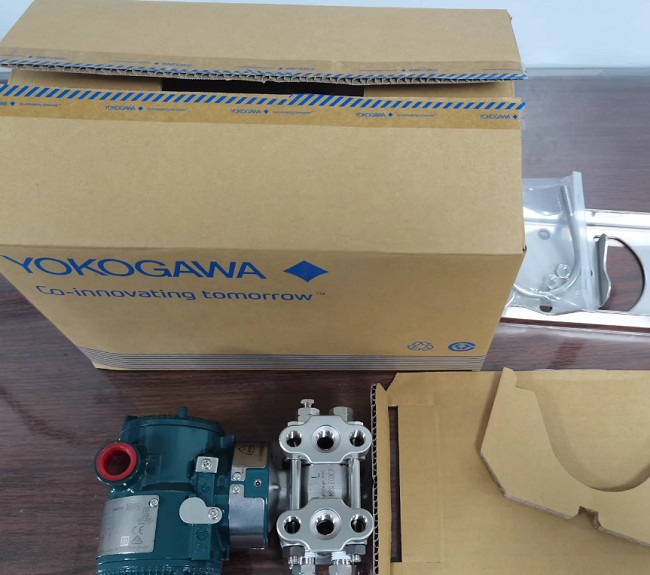

Product Images
