Yokogawa EJX210A-JHS5G-919EN-EA13B1WE03-A Flange Mounted Differential Pressure Transmitter
Product Overview
The Yokogawa EJX210A-JHS5G-919EN-EA13B1WE03-A is a high-performance flange-mounted differential-pressure level transmitter engineered for accurate, reliable measurement in tanks, distillation columns, and reactor vessels. Featuring a 3" ANSI 150# raised-face flange and Hastelloy C-276 diaphragm, it withstands corrosive media and high static pressures while delivering ±0.075 % span accuracy. The 4–20 mA HART protocol enables remote configuration, diagnostics, and integration with DCS, PLC, or asset-management systems.
Key Features & Benefits
• 0–2,000 kPa (H-span) calibrated range – ideal for tall vessels & high-density liquids
• ±0.075 % span accuracy – ±0.1 % total performance including temperature effects
• Hastelloy C-276 diaphragm & 316 SST flange – superior corrosion resistance
• 3" ANSI 150# RF flange – direct drop-in for legacy displacer transmitters
• 4–20 mA HART 5/7 – remote trim, diagnostics, and multi-drop operation
• SIL 2 certified (IEC 61508) – meets safety loop requirements without external solvers
• 0.1 second response time (adjustable) – fast level control in batch reactors
• –40 °C to +120 °C process temperature – handles cold storage and hot process fluids
• Integral LCD indicator option – local read-out without opening cover
• ATEX, IECEx, FM, CSA hazardous-area approvals – global installation flexibility
Typical Applications
• Chemical reactor level control
• Crude-oil separator vessels
• Cryogenic LNG storage tanks
• Pharmaceutical buffer tank inventory
Technical Specifications
Measurement Principle: Differential pressure, flange-mounted
Calibrated Span: 0–2,000 kPa (0–290 psi) H-span
Accuracy: ±0.075 % span (reference)
Wetted Materials: Hastelloy C-276 diaphragm, 316L SST flange
Flange Rating: 3" ANSI 150# RF
Process Connection: 1/4–18 NPT side vent/drain
Output: 4–20 mA, HART 5/7
Power Supply: 12–42 V DC (loop-powered)
Ambient Temperature: –40 °C to +85 °C
Process Temperature: –40 °C to +120 °C
Enclosure Rating: IP66 / NEMA 4X
Approvals: CE, UL, ATEX Ex d, IECEx, FM, SIL 2/3

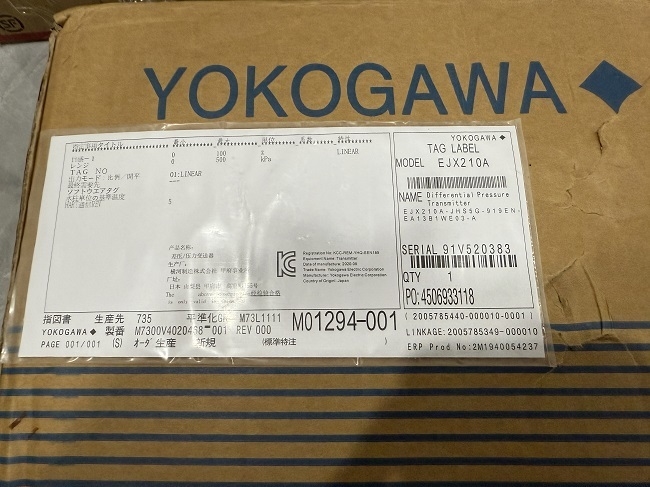

Product Images
