LC1D65ABD Schneider Electric TeSys D 65A DC Coil Contactor Original
|
LC1D65ABD Schneider Electric TeSys D 65A DC Coil Contactor Original
| Place of Origin | France |
| Brand Name | Schneider Electric |
| Certification | COO & COC |
| Model Number | LC1D65ABD |
Product Details
Customer Courier A/C:
Yes – DHL/FedEx/UPS Account Accepted
Condition:
Brand New And Original
Shipping Weight:
0.9kg
Trade Terms::
EXW, DAP, FOB, CIF
Packing Size:
204 × 150 × 36 Mm
Warranty:
1 Year
Express Delivery:
DHL (default) / FedEx / UPS / TNT / Air / Sea
Highlight:
Schneider Electric TeSys D contactor
,65A DC coil contactor
,original Schneider Electric PLC
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$68
Packaging Details
Brand new and original
Delivery Time
3-5 days
Payment Terms
T/T,Alipay,Paypal
Supply Ability
99+
Product Description

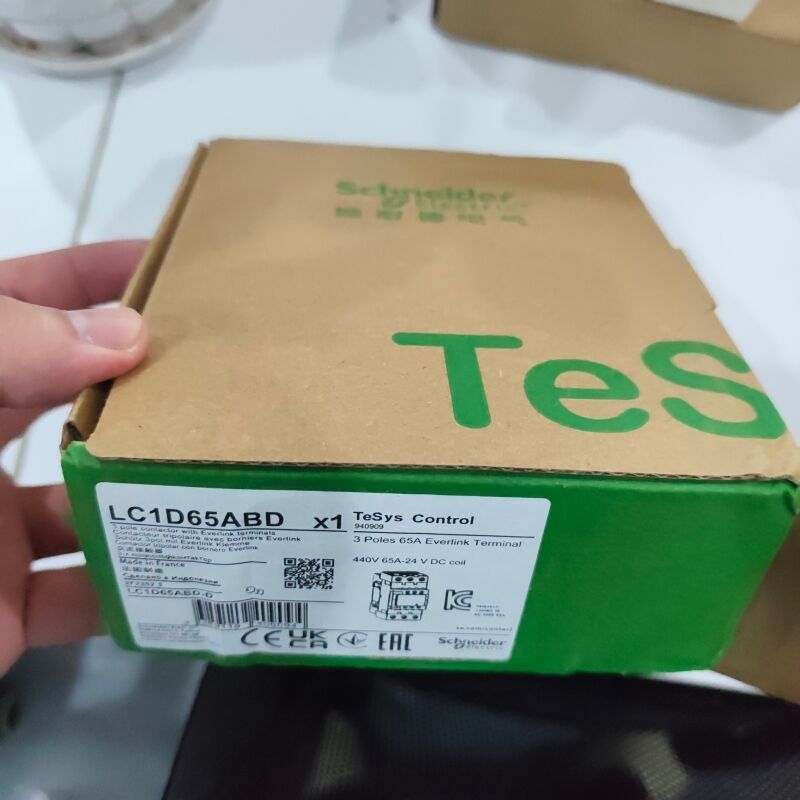

Product pictures
Product Overview: Schneider Electric LC1D65ABD
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Part Number | LC1D65ABD |
| Product Range | TeSys D Green / Low Consumption |
| Device Type | 3-Pole Power Contactor with DC Coil |
| Base Model | LC1D65A |
Application & Fault Scenarios
Typical Uses: PLC-driven motor control, energy-efficient panels, silent-running HVAC systems.
Common Field Issues:
Note: "BD" suffix denotes integrated electronic protection; not interchangeable with standard "B7" AC coil variant.
Related products
| LC1D65AB7C | LC1D65AM7C |
| LC1D50ABD | LC1D80ABD |
| LC1D40ABD | LC1D95ABD |
| LC1D38ABD | LC1D32ABD |
| LC1D25ABD | LC1D18ABD |
| LC1D12ABD | LC1D09ABD |
| LC1D65ABDL | LC1D65ABDT |
| LC1D50ABDL | LC1D80ABDL |
| LC1D40ABDL | LC1D95ABDL |
| LC1D38ABDL | LC1D32ABDL |
FAQ
Q1: What does the "ABD" suffix mean in LC1D65ABD?
A: "A" = base frame size, "B" = 24 VDC coil voltage, "D" = low-power DC type with built-in reverse-polarity diode and snubber — designed for direct PLC transistor output without external relay.
A: "A" = base frame size, "B" = 24 VDC coil voltage, "D" = low-power DC type with built-in reverse-polarity diode and snubber — designed for direct PLC transistor output without external relay.
Q2: Can LC1D65ABD replace a standard LC1D65B7 AC coil contactor?
A: Electrically compatible for same load ratings, but coil supply must change from 24 VAC to 24 VDC; control circuit rewiring required. Physical dimensions and mounting are identical.
A: Electrically compatible for same load ratings, but coil supply must change from 24 VAC to 24 VDC; control circuit rewiring required. Physical dimensions and mounting are identical.
Q3: Is LC1D65ABD suitable for switching resistive heating loads?
A: Yes, rated 100 A under AC-1 category; ensure proper thermal management inside enclosure when operating near full resistive current continuously.
A: Yes, rated 100 A under AC-1 category; ensure proper thermal management inside enclosure when operating near full resistive current continuously.
