| Place of Origin: | China |
| Brand Name: | Schneider Electric |
| Certification: | COO & COC |
| Model Number: | ATS22D47Q |
ATS22D47Q Schneider Electric Compact Soft Starter 230–440 V Altistart 22 11-22kW
The Schneider Electric ATS22D47Q is a reliable and compact soft starter from the Altistart 22 (ATS22) series, designed to provide smooth, controlled acceleration and deceleration of three-phase asynchronous motors up to 22 kW (30 HP) at 230 V AC. With a rated current of 47 A, this model is ideal for applications requiring reduced mechanical stress, lower inrush current, and extended equipment life—such as pumps, compressors, conveyors, mixers, and fans.
Featuring built-in torque control, phase failure protection, thermal overload protection, and adjustable start/stop ramps, the ATS22D47Q ensures safe and efficient motor operation while minimizing voltage dips on the power supply during startup. Its integrated bypass contactor eliminates unnecessary heat generation during normal run mode, improving energy efficiency and reducing cabinet cooling requirements.
Designed for global use, the ATS22D47Q operates on a 208–230 V AC three-phase supply and includes a built-in 24 V DC power supply for external control circuits. It supports both local keypad control and remote control via discrete I/O or Modbus RTU communication (via optional communication modules), making it suitable for both standalone and networked industrial automation systems.
Product Overview: Schneider Electric ATS22D47Q
| Manufacturer | Schneider Electric |
| Product Line | Altistart 22 (ATS22) Soft Starters |
| Model | ATS22D47Q |
| Rated Current | 47 A |
| Motor Power (at 230 V) | 22 kW / 30 HP |
| Supply Voltage | 208–230 V AC ±15%, 3-phase |

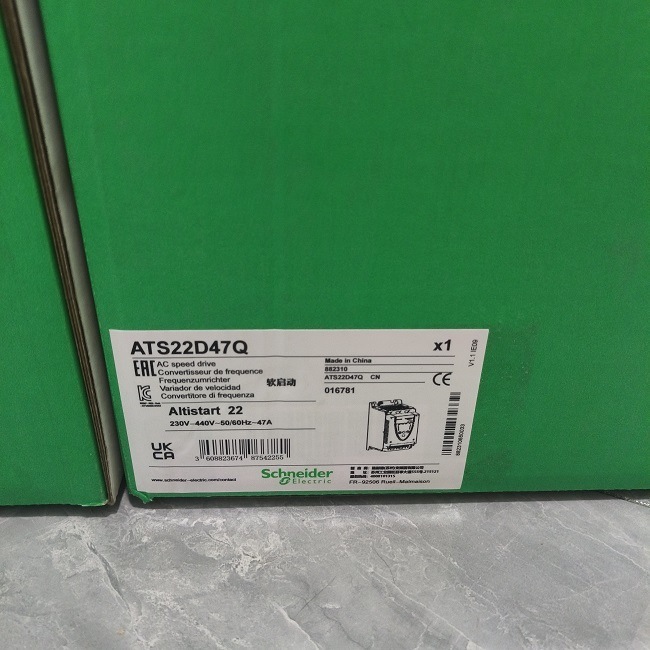

Product details pictures
