VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part
VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part
  • VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part
  • VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part
  • VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part
  • VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part

VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part

Product Details:
Place of Origin: France
Brand Name: Schneider Electric
Certification: COO & COC
Model Number: VX5A1HD55N4
Detail Information
Place of Origin:
France
Brand Name:
Schneider Electric
Certification:
COO & COC
Model Number:
VX5A1HD55N4
Shipping Weight:
0.85kg
Warranty:
1 Year
Packing Size:
320 X 175 X 48 Mm
Express Delivery:
DHL, FedEx, UPS
Condition:
Brand New And Original
Trade Terms::
EXW, DAP, FOB, CIF
Trading Information
Minimum Order Quantity:
1
Price:
$20
Packaging Details:
Brand new and original
Delivery Time:
3-5 days
Payment Terms:
T/T,Alipay,Paypal
Supply Ability:
99+
Product Description

VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part

The Schneider Electric VX5A1HD55N4 is an original power drive board engineered as a factory spare component for the Altivar 61 and Altivar 71 series 55kW variable frequency drives. This PCB assembly generates isolated PWM gate drive signals that switch the IGBT power modules, while distributing regulated DC bus energy to the inverter stage for precise three-phase motor output control.
Built to Schneider Electric factory specifications, the VX5A1HD55N4 integrates optically isolated gate driver channels, desaturation detection circuits, and short-circuit protection that respond within microseconds to safeguard the power stage from destructive fault currents. Precision dead-time control and symmetric gate pulse distribution minimize switching losses and ensure balanced thermal loading across all IGBT devices during continuous heavy-duty operation.
Replacing a degraded power drive board with a genuine Schneider Electric VX5A1HD55N4 eliminates misfiring, erratic output waveforms, and unexpected overcurrent trips caused by aging driver components. Each unit is manufactured and tested to original equipment standards, guaranteeing direct plug-and-play installation and long-term reliability for your Altivar drive system.

Product Specifications: Schneider Electric VX5A1HD55N4


Parameter Specification
Brand Schneider Electric
Model VX5A1HD55N4
Product Type Power Drive Board (PCB Assembly)
Series Altivar 61 / Altivar 71
Rated Drive Power 55 kW
Function IGBT Gate Driving / DC Bus Power Distribution


Product pictures

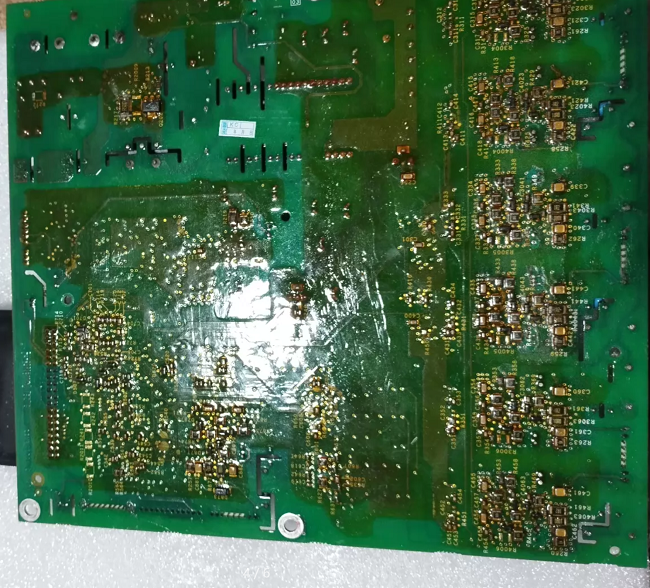

VX5A1HD55N4 Schneider Electric Original Power Drive Board for ATV61 ATV71 55kW Variable Frequency Drive Spare Part
