| Place of Origin: | Germany |
| Brand Name: | Schneider Electric |
| Certification: | COO & COC |
| Model Number: | GV2AF3 |

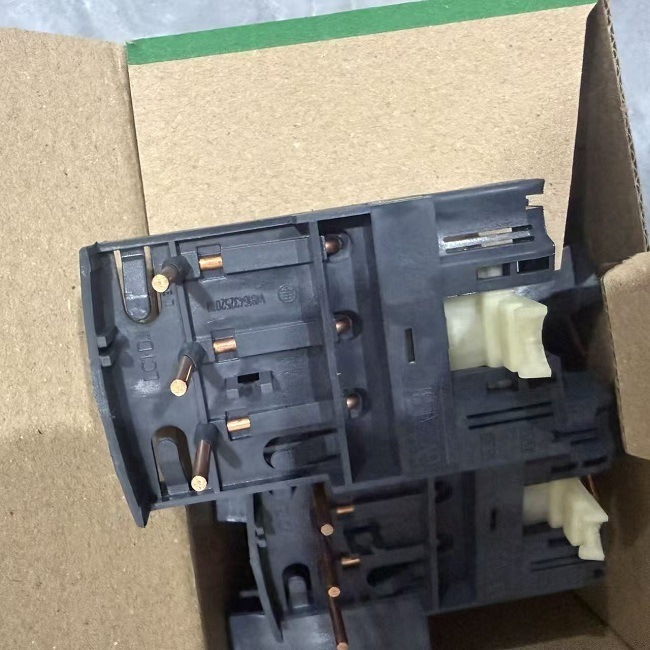

GV2AF3 Schneider Electric interconnection block TeSys GV2 to connect GV2
The Schneider Electric GV2AF3 is a high-quality auxiliary contact block designed specifically for use with the GV2 series of motor protection circuit breakers (MPCBs). This compact add-on module provides reliable remote signaling and control functionality, enabling integration into industrial automation, motor control centers (MCCs), and safety circuits by indicating the ON/OFF or tripped status of the associated breaker.
Ideal for panel builders, maintenance teams, and system integrators, the GV2AF3 enhances operational visibility and supports predictive maintenance strategies in commercial and industrial applications.
| Model | GV2AF3 |
| Type | Mechanical interlock/combination module (including electrical connection) |
| Function | Connect the GV2ME/GV2P motor circuit breaker with LC1D09... |
| Rated current | 63 A (the same as the upper limit of the circuit breaker) |
| Rated voltage | 690 V AC |
| Pole number | 3P + 1 group extended signal bits |
| Terminal | EverLink stainless steel pressure plate, copper wire 1-25mm ², torque 2.5N ·m |
| Mechanical life | ≥ 3 million interlocking operations |
| Operating temperature | -25... +60 °C, altitude 3000 meters |
| Certifications | CE, UL, CSA, CCC, EAC, RoHS, REACH Green Premium |
Accessories (Purchase all at once from the same counter)
GVAE11 (1NO+1NC positive signal)
GVAD0110 (1NO+1NC side fault)
GV2G454 (4P 54mm busbar, up to 12 units connected in parallel
GV2MC01 (Transparent IP55 housing, specifically designed for outdoor water pumps)
LADN series auxiliary contacts (installed on the contactor side)
