| Place of Origin: | China |
| Brand Name: | Schneider Electric |
| Certification: | COO & COC |
| Model Number: | GV2G554 |
GV2G554 Schneider Electric Linergy FT Comb busbar 63A 5 tap-offs 54mm pitch GV2G
Product Title
GV2G554 Schneider Electric Linergy FT Comb busbar 63A 5 tap-offs 54mm pitch GV2G
Description
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
Key Features
Range:Linergy
Product name:FT
Device short name:GV2G
Product or Component Type:Comb busbar
Accessory / separate part category:Connection accessory
Poles description:3P
Number of tap-offs:5
[Ith] conventional free air thermal current:63 A
Connection pitch:2.1 in (54 mm)
Typical Applications
Common scenarios include:OEM control cabinets, HVAC and water pump boxes, conveyor lines, packaging machines, variable frequency - circuit breaker hybrid cabinets
Installation Notes
The GV2G554 is equipped with A GV2 starter, clamped onto the DIN rail, inserted into the terminal, tightened to 2 N·m, with a 63 A incoming wire, an arc separator is added, and it is fully loaded at ≤40 ℃.

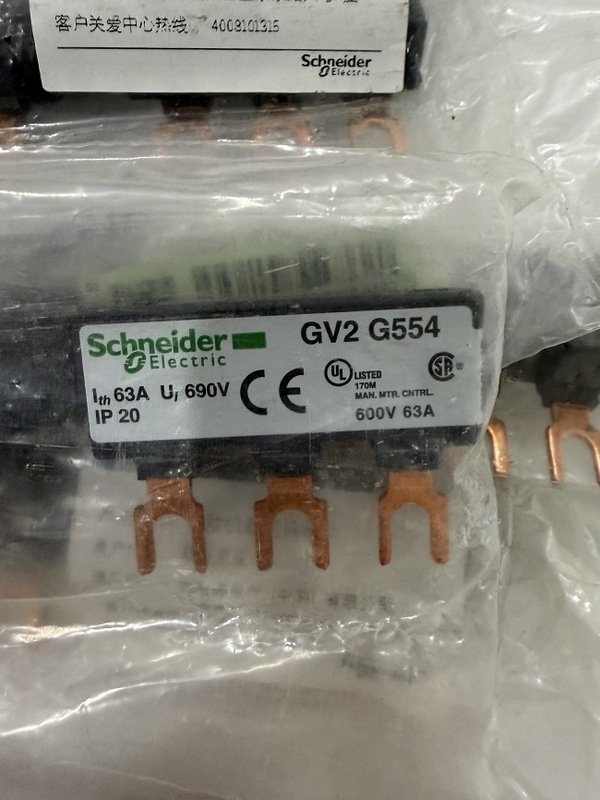

Product details pictures
