Schneider Electric VW3A1104R30 Remote Cable 3m For Graphic Display Terminal

Schneider Electric VW3A1104R30 Remote Cable 3m For Graphic Display Terminal

1. Overview of the Schneider Electric VW3A1104R30

The Schneider VW3A1104R30 is a 3-meter-long, specialized communications cable with shielded RJ45 connectors on both ends. It is designed to quickly connect Schneider graphic display terminals (such as Magelis HMIs or advanced control panels) to Altivar/Altistart series inverters and TeSys T motor management systems. The shield is integrally molded into the injection-molded jacket, ensuring long-term flexing in industrial environments ranging from 0–70°C, and is resistant to drag and oil contamination, ensuring zero Modbus/CANopen signal loss. The cable utilizes a highly flexible 8-core twisted pair cable with an aluminum foil shield, achieving 100 Ω impedance and meeting CAT5e standards. The RJ45 terminals are gold-plated, 3 μm in diameter, and have a plug-and-play life of over 1,000 cycles. Plug-and-play operation eliminates the need for on-site stripping and crimping, reducing wiring time by over 50%. The orange jacket is easily identifiable, reducing the risk of accidental disconnection during maintenance.

2. Core Features:

1. Basic Parameters
Model: VW3A1104R30
Category: Graphic Display Terminal Remote Connection Cable (RJ45-RJ45)
Length: 3 m (±0.1 m)
Connector: 8P8C RJ45 male connectors on both ends, gold-plated contacts ≥3 µm
Cable Specifications: CAT5e rated, 8-core twisted pair, aluminum foil and braid double shield, flame-retardant PVC jacket (orange)
Electrical Characteristics: Impedance 100 Ω ±15%, Rated Current 1 A/core, Operating Voltage 30 V AC/DC
Mechanical Characteristics: Bend Radius ≥ 30 mm, Insertion/Removal Life ≥ 1000 Cycles
Environmental Rating: Operating Temperature –20°C to +70°C; IP20 Protection; Oil and UV Resistant

2. Compatibility and Certifications
Applicable Drives/Systems:
– Altivar 12 / 212 / 312 / 32 / 61 / 71 / 320 / 340/630/930 Series Inverters
– Altistart 22 Soft Starter
– Lexium 32 Servo Drive
– TeSys T Motor Management System
Compatible Terminals: VW3A1101, VW3M1701, and other Graphic Display Terminals
Certifications: CE, UL 508, EAC, RoHS, REACH

3. Feature Highlights
Plug-and-Play: Double-ended shielded RJ45 connectors connect to remote panels without crimping, reducing field wiring time by 50%.
High-Speed ​​and Reliable: Shielding suppresses EMI, ensuring loss-free Modbus/CANopen or Ethernet communications.
Maintenance-Friendly: Orange sheath for easy identification and prevents accidental removal. 3m length covers the distance from most cabinets to doors.
Green Packaging: Made with ≥70% recycled cardboard, in line with Schneider's 2050 Net Zero Emissions commitment.

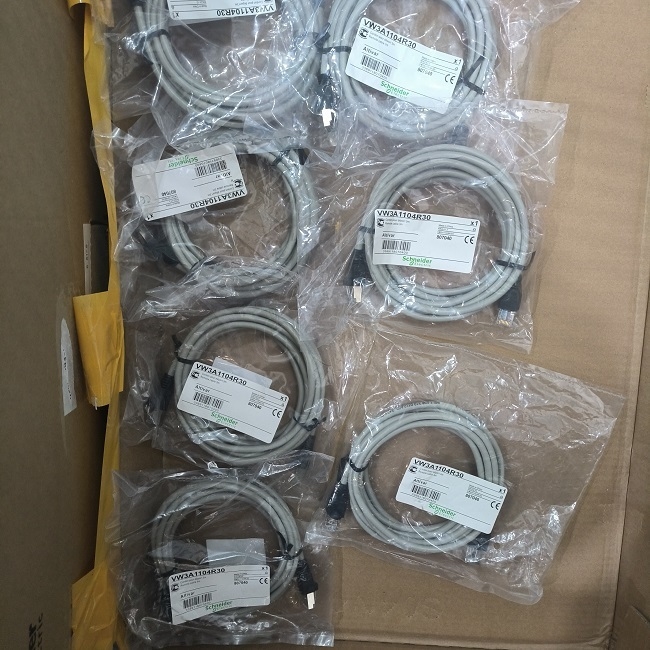

3. Product details pictures
