RTU560 560CMR02 ABB Communication & Control Module for Substation Automation
|
RTU560 560CMR02 ABB Communication & Control Module for Substation Automation
| Place of Origin | Sweden |
| Brand Name | ABB |
| Certification | COO & COC |
| Model Number | RTU560 560CMR02 |
Product Details
Customer Courier A/C:
Yes – DHL/FedEx/UPS Account Accepted
Trade Terms:
EXW, DAP, FOB, CIF
Condition:
Brand New And Original
Packing Size:
160 Mm × 233 Mm × 40 Mm
Shipping Weight:
0.6kg
Shipping:
DHL (default) / FedEx / UPS / TNT / Air / Sea
Highlight:
ABB RTU560 communication module
,RTU560 substation automation module
,560CMR02 control module with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2273
Packaging Details
Brand new and original
Delivery Time
3-5 days
Payment Terms
T/T,Alipay,Paypal
Supply Ability
99+
Product Description

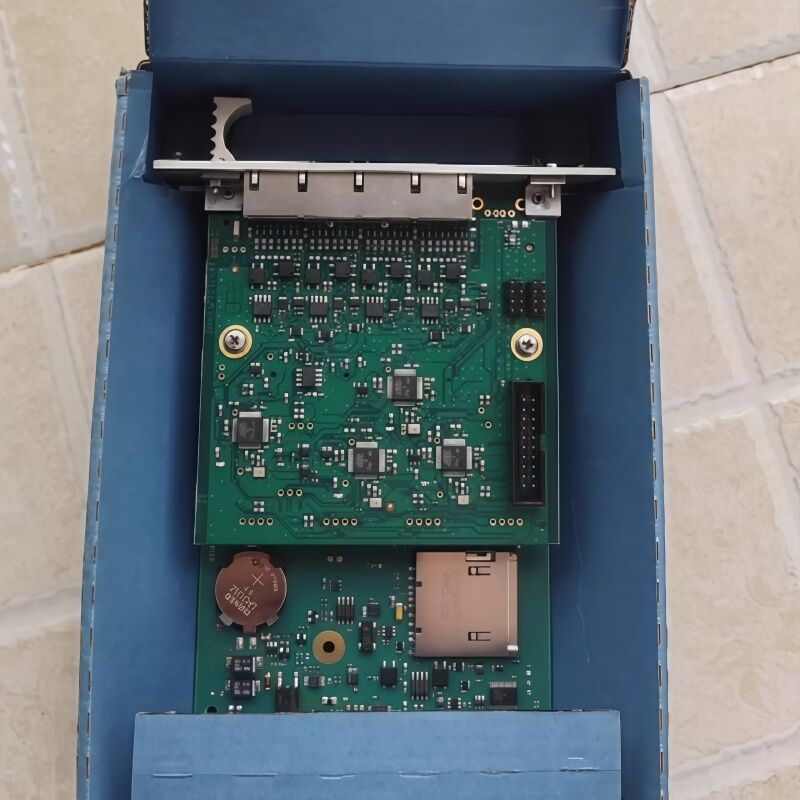

Product pictures
Product Overview: ABB RTU560 560CMR02
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 560CMR02 |
| Product Series | RTU560 Remote Terminal Unit |
| Device Type | Communication & Control Module (CMU) |
| CPU | ARM Cortex A8 (AM3352) 32-bit processor |
Application & Fault Scenarios
Typical Uses: Acts as the central communication and control unit in ABB RTU560 systems. Manages I/O modules via SPB bus, reads process events, sends commands to output modules, and communicates with SCADA/HMI systems via Ethernet and serial ports. Widely deployed in substation automation, power transmission, water treatment, and oil & gas pipeline monitoring.
Common Field Issues:
Related products
| 560CMU05 | 560CMU02R2 |
| 560RTC02 | 560RCR01 |
| 560HMR01 | 560SFR02 |
| 560BCU05 | 560PSU02 |
| 23OK24 | 560FOC40 |
| 520ADD03 | 23AD64 |
| RTU560A/C/D/E/G Configurations | RTU200/RTU232 Legacy |
| REF615/RET615 IEDs | AC 800M PLC |
FAQ
Q1: What is ABB RTU560 560CMR02?
A: The 560CMR02 is the central communication and control module (CMU) for the ABB RTU560 remote terminal unit series. It features an ARM Cortex A8 CPU, 6 serial ports (RS-232/RS-485), 2 Ethernet ports, USB 2.0, and a battery-backed RTC for substation automation and SCADA integration.
A: The 560CMR02 is the central communication and control module (CMU) for the ABB RTU560 remote terminal unit series. It features an ARM Cortex A8 CPU, 6 serial ports (RS-232/RS-485), 2 Ethernet ports, USB 2.0, and a battery-backed RTC for substation automation and SCADA integration.
Q2: What is the difference between 560CMR02 R0001 and R0002?
A: Both are versions of the same 560CMR02 module. R0001 includes standard cybersecurity features, while R0002 adds a dedicated security chip for advanced cybersecurity protection. Choose R0002 for environments requiring enhanced network security compliance.
A: Both are versions of the same 560CMR02 module. R0001 includes standard cybersecurity features, while R0002 adds a dedicated security chip for advanced cybersecurity protection. Choose R0002 for environments requiring enhanced network security compliance.
Q3: What communication protocols does 560CMR02 support?
A: The module supports IEC 60870-5-101/104, DNP3.0 (serial and TCP/IP), Modbus (serial and TCP/IP), IEC 61850 Station Bus, TG800, SINAUT8FW, and legacy protocols (RP570, Indactic). It handles both Ethernet-based and UART character-based protocols.
A: The module supports IEC 60870-5-101/104, DNP3.0 (serial and TCP/IP), Modbus (serial and TCP/IP), IEC 61850 Station Bus, TG800, SINAUT8FW, and legacy protocols (RP570, Indactic). It handles both Ethernet-based and UART character-based protocols.
