HC202500-0XX0XK9 HENGSTLER HC20 Solid Shaft Incremental Encoder 2500 PPR Original
|
HC202500-0XX0XK9 HENGSTLER HC20 Solid Shaft Incremental Encoder 2500 PPR Original
| Place of Origin | Germany |
| Brand Name | HENGSTLER |
| Certification | COO & COC |
| Model Number | HC202500-0XX0XK9 |
Product Details
Customer Courier A/C:
Yes – DHL/FedEx/UPS Account Accepted
Trade Terms:
EXW, DAP, FOB, CIF
Condition:
Brand New And Original
Packing Size:
58 × 95 Mm
Shipping Weight:
0.75 Kg
Shipping:
DHL (default) / FedEx / UPS / TNT / Air / Sea
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$140
Packaging Details
Brand new and original
Delivery Time
3-5 days
Payment Terms
T/T,Alipay,Paypal
Supply Ability
99+
Product Description

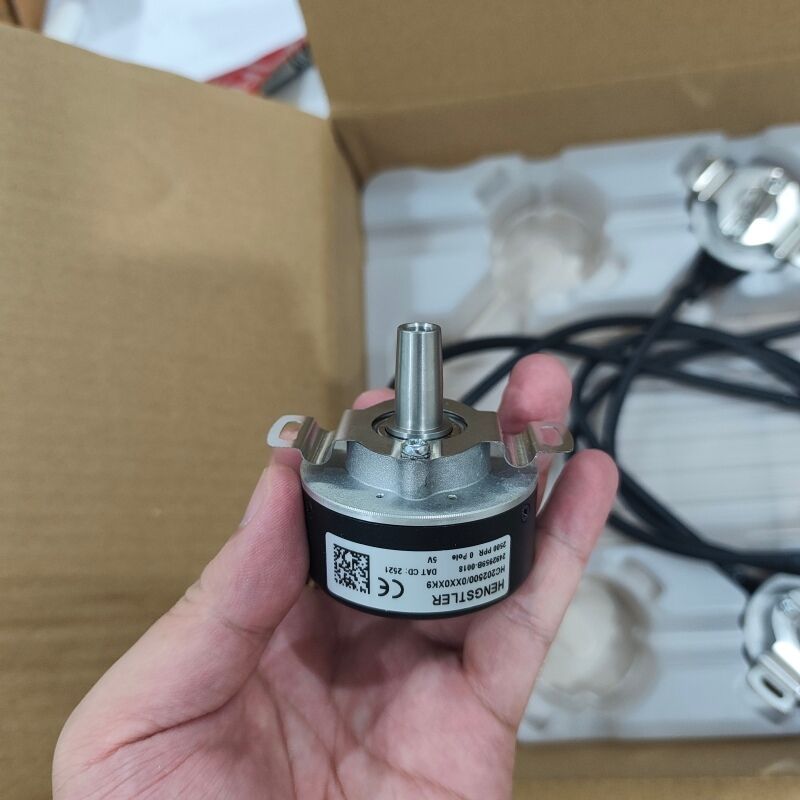

Product pictures
Product Overview: HENGSTLER HC202500-0XX0XK9 (HC20 Series)
| Parameter | Specification |
|---|---|
| Manufacturer | Hengstler GmbH |
| Order Code | HC202500-0XX0XK9 |
| Product Series | HC20 (Heavy Duty Incremental Encoder) |
| Device Type | Solid Shaft Incremental Rotary Encoder |
Application & Fault Scenarios
Typical Uses: Servo motor position feedback, CNC spindle speed measurement, crane hoist travel monitoring, steel mill roll speed detection.
Common Field Issues:
Note: The suffix "0XX0XK9" encodes specific output, voltage, and cable configuration — cross-check against the original unit's full type plate before replacement.
Related products
| HC202500/8290A | HC202500/AX90XK8 |
| HC201024/0XD0AL9 | HC182500/83F4B |
| HC54H5000/023A | HC202500/0XX0XK8 |
| HC202500/0XX0XK7 | HC202500/0XX0XK6 |
| HC201024/0XX0XK9 | HC202048/0XX0XK9 |
| HC205000/0XX0XK9 | HC201000/0XX0XK9 |
| RI41-O/3600ER.11KB | RI58-O/10000EK.72IF |
| RI64/1024AW4H9TBA4X09 | RI41-H/512EE.22KB |
| AD36/1217AF.0RBIB | AC58/1212EK.42PBA |
| HS35R-1024-C547 | F182048/886GA |
FAQ
Q1: What does the suffix "0XX0XK9" mean in HC202500-0XX0XK9?
A: It defines the encoder's specific output type, supply voltage range, cable exit direction, and connector variant — each character position maps to a configuration option in Hengstler's HC20 ordering matrix; always match the full suffix when replacing an existing unit.
A: It defines the encoder's specific output type, supply voltage range, cable exit direction, and connector variant — each character position maps to a configuration option in Hengstler's HC20 ordering matrix; always match the full suffix when replacing an existing unit.
Q2: Can HC202500-0XX0XK9 replace a Heidenhain ERN 1387 2500 PPR encoder?
A: Mechanically possible if shaft diameter and mounting match, but electrically verify output type — Heidenhain ERN uses 1Vpp sine/cosine while HC20 outputs HTL square-wave; the downstream controller must accept the same signal format.
A: Mechanically possible if shaft diameter and mounting match, but electrically verify output type — Heidenhain ERN uses 1Vpp sine/cosine while HC20 outputs HTL square-wave; the downstream controller must accept the same signal format.
Q3: What is the maximum cable length for HC202500-0XX0XK9 without signal degradation?
A: For HTL push-pull output at 2500 PPR, standard cable up to 100 m is typical; beyond that, use differential line driver (RS422) variant or add a signal repeater to maintain edge integrity at high rpm.
A: For HTL push-pull output at 2500 PPR, standard cable up to 100 m is typical; beyond that, use differential line driver (RS422) variant or add a signal repeater to maintain edge integrity at high rpm.
