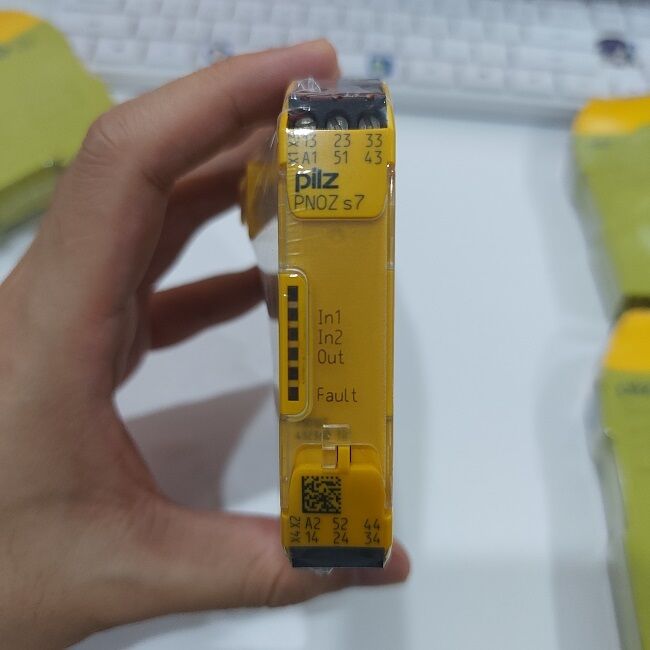

750107 Pilz PNOZ s7 Safety Relay 24VDC 4NO 1NC Contacts
The Pilz 750107 PNOZ s7 is a high-performance safety relay designed for reliable machine and system safety applications. This compact safety control device features 4 normally open (NO) contacts and 1 normally closed (NC) contact, providing versatile safety circuit configurations for various industrial automation requirements.
Engineered with German precision manufacturing, the PNOZ s7 offers exceptional reliability with silver alloy contacts that ensure low contact resistance and extended mechanical life. The relay operates on 24VDC power supply and is designed for easy installation on standard 35mm DIN rail mounting.
The Pilz 750107 incorporates advanced safety features including 6 LED indicators for quick status monitoring and diagnosis without external measuring equipment. Its spring clamp terminal design enables tool-free assembly and reduces wiring time by up to 20%, making it ideal for efficient system integration.
Product Specifications: Pilz 750107
| Parameter |
Specification |
| Brand |
Pilz |
| Model Number |
750107 |
| Product Name |
PNOZ s7 Safety Relay |
| Type |
Safety Control Relay |
| Series |
PNOZ s7 Series |
| Supply Voltage |
24 VDC |
| Power Consumption |
2 W |
| Input Type |
Single-channel wiring |
Product details pictures
Related products
| 750106 PNOZ s6 |
750108 PNOZ s8 |
| 750116 PNOZ s6.1 |
750117 PNOZ s6.2 |
| 750167 PNOZ s7.1 |
750177 PNOZ s7.2 |
| 751107 PNOZ s7 C |
751167 PNOZ s7.1 C |
| 751187 PNOZ s7 C coated |
772000 PNOZ X1 |
| 772100 PNOZ X2 |
772110 PNOZ X2.1 |
| 773000 PNOZ X3 |
773100 PNOZ X4 |
| 774000 PNOZ X5 |
774100 PNOZ X6 |
| 777100 PNOZ X7 |
777584 PZE X4VP8 |
| 777585 PZE X4P |
784130 PNOZmulti Mini |
FAQ
Q1: 750107 still available?
A: Yes, this is an active Pilz product.
Q2: Mounting type?
A: 35mm DIN rail mounting, 45mm width.
Q3: Contact configuration?
A: 4 normally open + 1 normally closed contacts.
