EL3102 Beckhoff 2-Channel Analog Input Terminal Module -10 to +10V Range
|
EL3102 Beckhoff 2-Channel Analog Input Terminal Module -10 to +10V Range
| Place of Origin | Germany |
| Brand Name | Beckhoff |
| Certification | COO & COC |
| Model Number | EL3102 |
Product Details
Packing Size:
12 × 100 × 68 Mm
Shipping Weight:
0.65 Kg
Trade Terms::
EXW, DAP, FOB, CIF
Express Delivery:
DHL, FedEx, UPS
Condition:
Brand New And Original
Warranty:
1 Year
Highlight:
Beckhoff 2-channel analog input module
,EL3102 terminal module -10 to +10V
,Beckhoff analog input terminal with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$92
Packaging Details
Brand new and original
Delivery Time
3-5 days
Payment Terms
T/T,Alipay,Paypal
Supply Ability
99+
Product Description
EL3102 Beckhoff 2-Channel Analog Input Terminal Module -10 to +10V Range
The Beckhoff EL3102 is a high-precision 2-channel analog input terminal module designed for industrial automation applications requiring accurate voltage measurement. This EtherCAT terminal module provides reliable signal acquisition with a measurement range of -10 to +10 V and exceptional 16-bit analog-to-digital conversion resolution.
Featuring differential input channels with electrical isolation, the EL3102 ensures accurate signal transmission while protecting against electrical interference and ground loops. Each input channel is independently isolated from the upper layer, providing superior noise immunity in demanding industrial environments.
The EL3102 supports both standard and compact process images, offering flexible data representation options. Advanced features include configurable FIR/IIR filtering for signal conditioning and limit value monitoring for real-time threshold detection. The module requires no address or configuration settings, simplifying system integration and reducing setup time.
With robust EMC compliance to EN 61000-6-2/EN 61000-6-4 standards and vibration/shock resistance per EN 60068-2-6/EN 60068-2-27, the EL3102 delivers reliable performance in harsh industrial conditions.
Product Overview: Beckhoff EL3102
| Parameter | Specification |
|---|---|
| Brand | Beckhoff |
| Model Number | EL3102 |
| Type | 2-Channel Analog Input Terminal Module |
| Series | EL310x Series |
| Function | Analog voltage measurement |
| Input Channels | 2 channels |
| Measurement Range | -10 V to +10 V |
| Resolution | 16-bit |
| Input Type | Differential input |
| Electrical Isolation | Yes (channel to upper layer) |

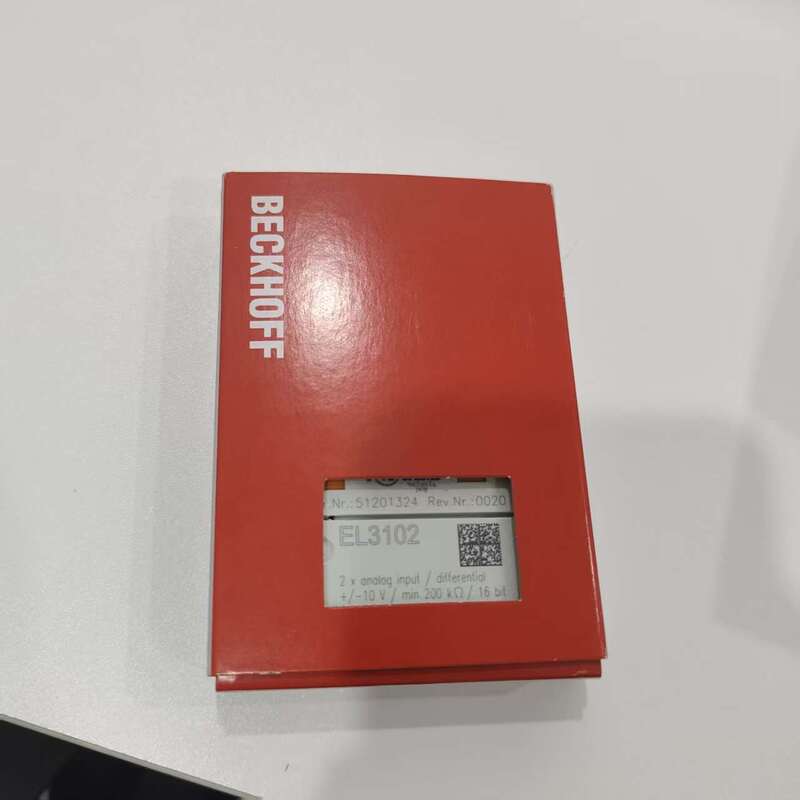

Product details pictures
Related products
| EL3101 | EL3104 |
| EL3112 | EL3124 |
| EL3142 | EL3144 |
| EL3151 | EL3152 |
| EL3162 | EL3164 |
| EL3202 | EL3204 |
| EL3214 | EL3312 |
| EL3356 | EL3403 |
| EL3632 | EL3702 |
| EL3751 | EL3771 |
FAQ
Q1: EL3102 still available?
A: Yes, EL3102 is an active Beckhoff product.
A: Yes, EL3102 is an active Beckhoff product.
Q2: Input range and resolution?
A: -10 to +10 V range with 16-bit resolution.
A: -10 to +10 V range with 16-bit resolution.
Q3: What special functions?
A: FIR/IIR filtering and limit value monitoring.
A: FIR/IIR filtering and limit value monitoring.
