CR-M3SS ABB Plug-in control relay module Spring terminal Double conversion contact
| Place of Origin | Germany |
| Brand Name | ABB |
| Certification | COO & COC |
| Model Number | CR-M3SS |
| Document | 1SVR405651R2000.pdf |
ABB plug-in control relay module
,CR-M3SS relay module spring terminal
,ABB double conversion contact relay
CR-M3SS ABB Plug-in control relay module Spring terminal Double conversion contact
ABB CR-M3SS is a high-performance plug-in control relay module in the ABB CR-M series, specifically designed for industrial automation, process control and OEM equipment that requires a medium number of contacts and high installation efficiency. This product adopts the Spring Clamp technology and supports tool-free rapid wiring, significantly enhancing the assembly and maintenance speed. Equipped with 3 sets of conversion contacts (3CO), it can simultaneously achieve multi-channel signal switching, status feedback and interlock control. As a universal contact module, the CR-M3SS must be used in conjunction with the CR-PSS series sockets. The coil voltage is determined by the selected socket, achieving highly flexible system integration.
Basic parameters
| Model | CR-M3SS |
| Series | ABB CR-M plug-in Relay (Spring Terminal Type) |
| Contact configuration | 3 CO (3 sets of conversion contacts each set contains C/NO/NC) |
| Rated working current • AC-15 | 3 A @ 230 V AC • DC-13 2A @ 24 V DC |
| Insulation voltage (Ui) | 250 V |
| Operating temperature range | -25°C to +55°C |
| Installation method | Insert into the CR-PSS series socket (35mm DIN rail installation) |
| Wiring method | Applicable wire cross-section 0.08-2.5mm ² (single strand or flexible wire, no end terminals required) |
| Dimensions (width × height × depth) | 17.5mm × 60mm × 90mm |
| weight | 58 grams |

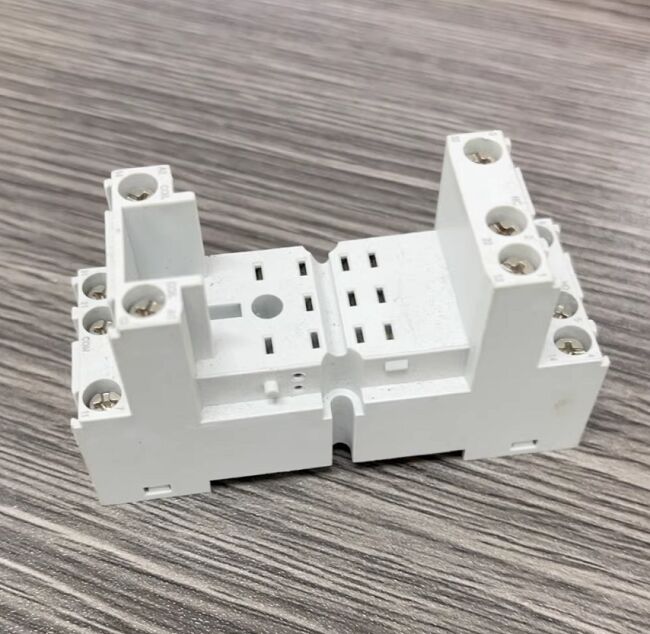

Product Images
