| Place of Origin: | Hungary |
| Brand Name: | Pepperl+Fuchs |
| Certification: | COO & COC |
| Model Number: | CBB8-18GS75-E2-V1 |

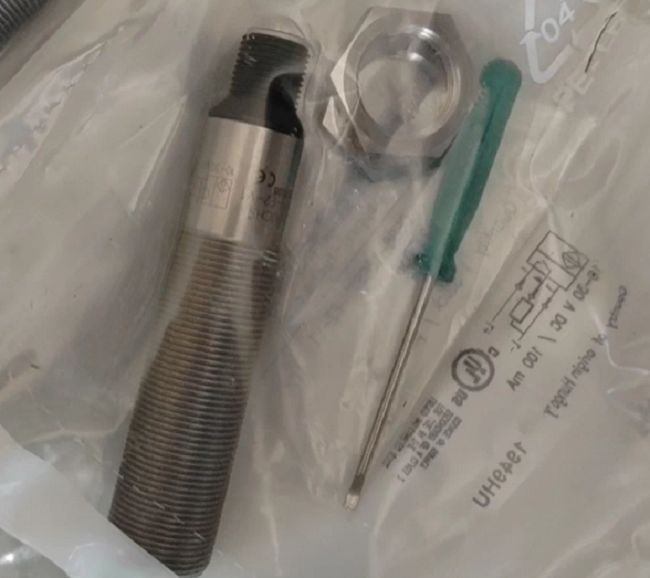

CBB8-18GS75-E2-V1 Pepperl+Fuchs Capacitive Proximity Switch 10-30V DC
This sensor features an M18 threaded brass nickel-plated housing, an 8mm detection distance, and a normally open PNP output. It is designed for high-precision, non-contact detection in IIoT (Industrial Internet of Things) environments. Supporting the IO-Link V1.1 communication protocol, it retains traditional switch outputs while enabling real-time uploading of process data, equipment status, and diagnostic information. It is a core sensing element for predictive maintenance and digital factories, widely used in automotive parts, food and beverage, pharmaceutical machinery, and intelligent logistics systems.
Typical Application Scenarios
Emergency Stop circuits in automated production lines
The safety fence of the robot workstation is interlocked with the safety door
Protective control for high-risk equipment such as stamping machines, injection molding machines, and packaging machinery
It is used in conjunction with sensors such as safety light curtains, safety carpets, and coded safety switches
Functional safety systems that comply with ISO 13849 or IEC 62061 standards are required
Core Technical Parameters and Specifications
| Model | CBB8-18GS75-E2-V1 |
| Brand | Pepperl+Fuchs (Pepperl+Fuchs) |
| Supply voltage | 24 V DC (±10%) |
| Output contacts | 3-channel forced guiding relay contacts (including normally open and normally closed combinations) |
| Maximum switching current | 6 A (Resistive load) |
| Response time | < 20 milliseconds |
| Operating temperature range | -20°C to +60°C |
| Protection grade | IP20 |
| Certifications | CE, UL, cULus, TUV functional safety certifications |
Product Images
