TB820V2 ABB I/O electronic frame base plate AC 800M S800 I O
| Place of Origin | Germany |
| Brand Name | ABB |
| Certification | COO & COC |
| Model Number | TB820V2 |
Product Details
Shipping Weight:
0.2 KG
Packing Size:
10.2 X 11.1 X 7.2 Cm
Condition:
Brand New And Original
Warranty:
One Year
Trade Terms::
EXW, DAP, FOB, CIF
Express Delivery:
DHL, FedEx, UPS
Highlight:
ABB I/O electronic frame base plate
,ABB AC 800M S800 I/O plate
,ABB spare parts with warranty
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
$50
Packaging Details
Brand new and original
Delivery Time
3-5 days
Payment Terms
T/T,paypal,alipay
Supply Ability
99+
Product Description

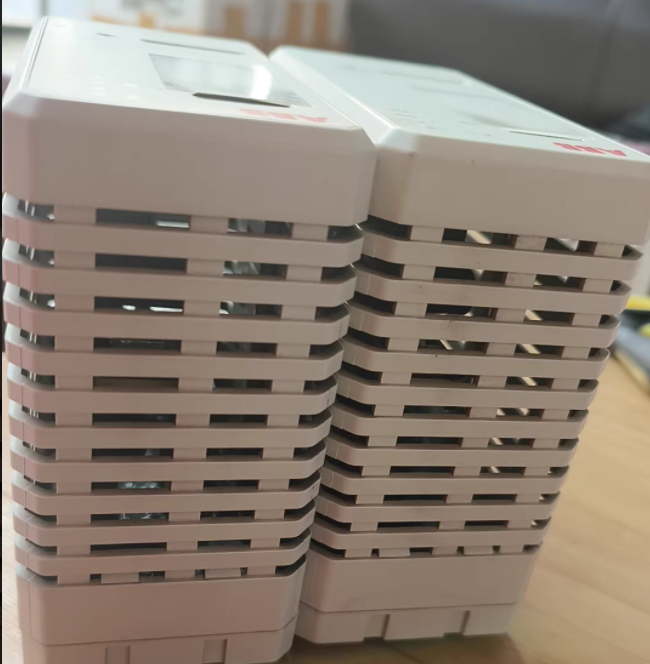

TB820V2 ABB I/O electronic frame base plate AC 800M S800 I O
The ABB TB820V2 is a standard 8-slot I/O electronic frame (also known as the base plate or back plate) for the S800 I/O system, specifically designed for vertical installation. It is used to support and connect up to 8 S800 series I/O modules (such as DI801, DO810, AI810, AO810, etc.). It provides power distribution and high-speed data communication channels for the module through the built-in ModuleBus bus, and connects to the CI801 (electrical) or CI854A (optical fiber) communication interface module via a dedicated interface, thereby accessing the AC 800M controller.
Technical Specifications
| Model | TB820V2 |
| ABB Ordering Code | 3BSE038456R1 |
| Product Family | ABB S800 I/O System |
| Compatible Base Units | TU810V1, TU830V1, TU811V1 |
| Max I/O Modules Supported | 8 per termination unit |
| Mounting | 35 mm DIN rail (EN 60715) |
| System Power Input | +24 V DC (from power supply unit) |
| Field Power Input | External +24 V DC (isolated) |
| Backplane Interface | Dual ModuleBus (for redundancy support) |
| Fuse Protection | Resettable PTC fuses for system and field power |
| LED Indicators | Power OK, Redundancy Status |
| Operating Temperature | 0掳C to +60掳C |
| Certifications | CE, UL, CSA, IEC 61010-1, IEC 61326, RoHS |
Product Images
Related Products
| TB820 | 11DI810 |
| 2TB820V2 | 12DI811 |
| 3TB840 | 13DI820 |
| 4TU810 | 14DO810 |
| 5TU831 | 15DO814 |
| 6TU841 | 16AO810 |
| 7AI810 | 17AO815 |
| 8AI815 | 18CI854 |
| 9AI835 | 19CI854A |
| 10AI845 | 20CI860 |
