| Place of Origin: | Germany |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | UAC383AE01 |
UAC383AE01 HIEE300890R0001 ABB AC 800M standard performance CPU module
ABB UAC383AE01 is a standard performance CPU module in the AC 800M automation control system, specifically designed for small and medium-sized process control, discrete manufacturing and infrastructure automation applications. As the core processor of the AC 800M Standard Performance Controller, UAC383AE01 offers excellent cost performance while maintaining high reliability. It is widely applied in scenarios such as water treatment plants, regional heating stations, small-scale chemical plants, building automation and OEM equipment integration.
Technical parameters
| Model Number | UAC383AE01 |
| Manufacturer | ABB |
| Product Type | Profibus DP Communication Interface Module |
| Compatible Systems | - ABB Advant Controller 400 (AC 400) |
| – MasterPiece 200/300 DCS | |
| – INFI 90 with AC 400 integration | |
| Primary Function | Enables AC 400 controller to communicate as a Profibus DP Master on industrial fieldbus networks |
| Fieldbus Protocol | Profibus DP (EN 50170 / IEC 61158) |
| Communication Speed | Adjustable: 9.6 kbps to 12 Mbps |
| Max. Slave Devices Supported | Up to 126 Profibus DP slaves (depending on GSD files and cycle time) |
| Electrical Interface | RS-485 (9-pin D-SUB male connector) |
System Integration Description
Compatible racks: Standard AC 800M racks (such as PM851, PM852 series)
Configuration software: Control Builder M (supports IEC 61131-3 programming languages such as LD, FBD, ST, SFC, etc.)
I/O extension
Connect the local or remote S800 I/O station via CI801 (electrical port ModuleBus)
A single CPU can support up to 12 I/O stations, with a maximum of 12 modules per station
Communication capability
Support protocols such as Modbus TCP, OPC DA, IEC 60870-5-104 (via Ethernet)
It can be used as an OPC Server to interface with upper-level systems such as SCADA and MES

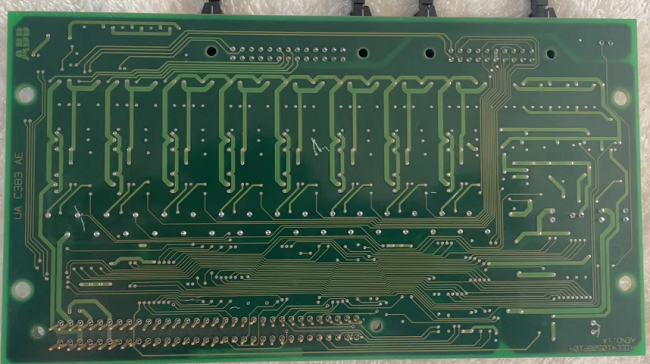

Product Images
