| Place of Origin: | Germany |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | CI867K01 |

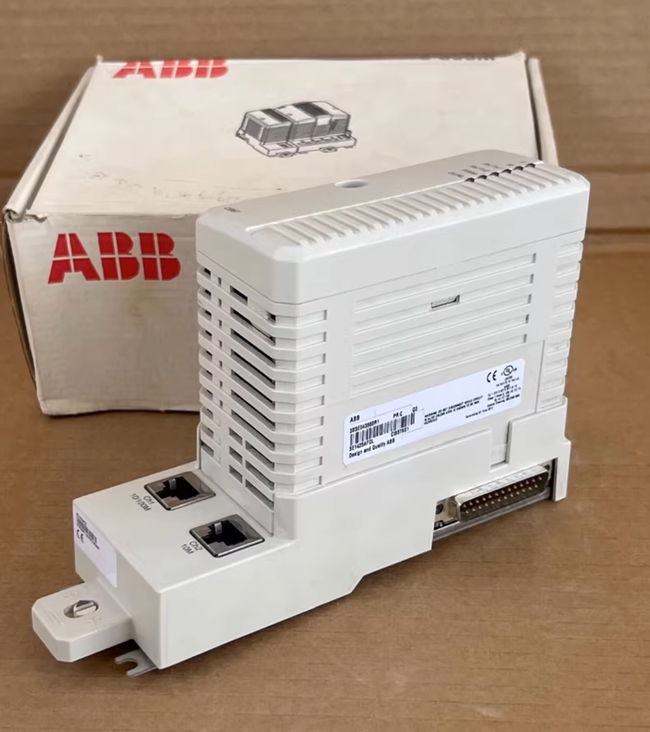

CI867K01 3BSE043660R1 ABB Modbus communication interface module Dedicated to the AC 800M series
ABB CI867K01 is a high-performance Modbus communication interface module specifically designed for ABB AC 800M programmable automation controller (PAC). This module provides 4 independent serial channels, supports Modbus RTU and Modbus ASCII protocols, and can operate simultaneously as a Master or a Slave. It is widely used to connect intelligent instruments, frequency converters, third-party PLCS, Rtus and other field devices that support the Modbus protocol.
Technical parameters:CI867K01 (Order Number 3BSE040940R1)
| Model | CI867K01 (Order Number 3BSE040940R1) |
| Product Name | Modbus Communication Interface Module |
| Applicable systems | ABB AC 800M series controllers (such as PM86x series cpus) |
| Communication protocol | Modbus RTU/Modbus ASCII |
| Number of channels | 4 independent serial channels |
| Maximum baud rate | 115.2 kbps |
| Electrical isolation | Isolation between channels and between channels and backplanes (500 VAC) |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Power supply mode | Powered by AC 800M backplane bus (+ 5V / + 24V) |
| Installation method | DIN rail, occupying 2 module widths (approximately 60mm wide) |
| Dimensions (width × height × depth) | 60 × 135 × 90 mm |
| Weight | Approximately 450 g |
| Protection grade | IP20 (For installation in control cabinets only) |
| Certification | CE, UL, CSA, in compliance with IEC 61131-2/3 standard |
Product Images
