SPNPM22 ABB Network protection module Intelligent protection Flexible configuration
|
SPNPM22 ABB Network protection module Intelligent protection Flexible configuration
| Place of Origin | Germany |
| Brand Name | ABB |
| Certification | COO & COC |
| Model Number | SPNPM22 |
Product Details
Shipping Weight:
0.2 KG
Packing Size:
10.2 X 11.1 X 7.2 Cm
Condition:
Brand New And Original
Warranty:
One Year
Trade Terms::
EXW, DAP, FOB, CIF
Express Delivery:
DHL, FedEx, UPS
Highlight:
ABB network protection module
,intelligent protection module
,flexible configuration protection module
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
$2000
Packaging Details
Brand new and original
Delivery Time
3-5 days
Payment Terms
T/T,paypal,alipay
Supply Ability
99+
Product Description
SPNPM22 ABB Network protection module Intelligent protection Flexible configuration
ABB SPNPM22 is a high-performance network protection module, specifically designed for power monitoring and energy management systems. This device can provide comprehensive power system protection functions, including overload protection, short-circuit protection, ground fault protection, etc., and supports multiple communication interfaces, making it convenient to integrate into existing SCADA systems or building automation systems. SPNPM22 offers real-time monitoring and diagnostic functions, helping users optimize power consumption efficiency and enhance system reliability.
Product Overview: ABB SPNPM22
| ABB Order Code | SPNPM22 |
| Manufacturer Part Number | Typically referenced as SPNPM22 (part of ABB’s S800 communication module family) |
| System Compatibility | ABB AC 800M controllers with S800 I/O system in System 800xA |
| Communication Protocol | PROFIBUS DP (Decentralized Periphery) per IEC 61158 / EN 50170 |
| Number of Ports | 2 independent PROFIBUS DP channels |
| Operating Mode per Port | Configurable as PROFIBUS DP Master (Class 1/2) or DP Slave—channels can operate in different modes simultaneously |
| Data Rate per Channel | 9.6 kbps to 12 Mbps, software-selectable |
| Max Devices per Channel | Up to 126 slave devices (when configured as Master) |
| Physical Interface | Two isolated RS-485 ports via 9-pin D-sub connectors (male) |
| Mounting | Installs on standard S800 I/O baseplates (e.g., TB840 single or TB850 redundant) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL, CSA, IEC 61000-6-2/4 (EMC immunity), IEC 61131-2 (industrial environment) |

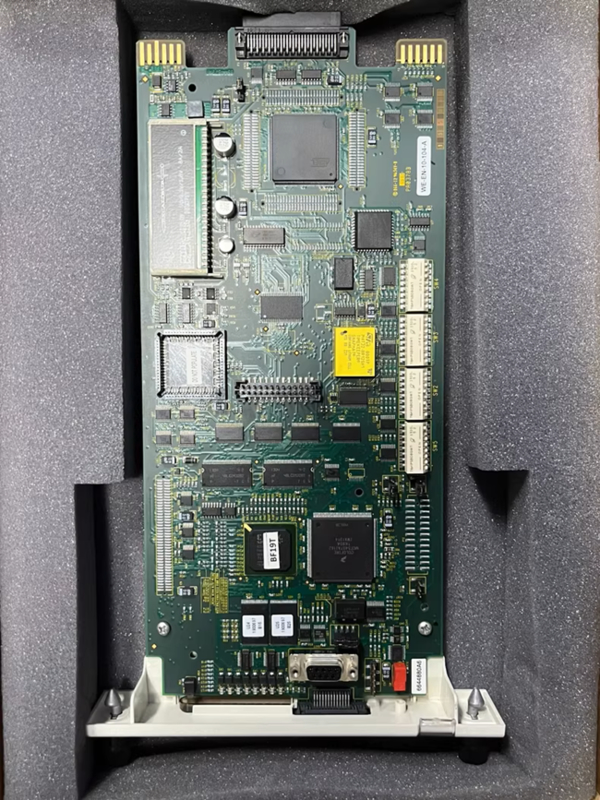

Product Images
