EL3068 Beckhoff High-performance 8-channel Analog Input EtherCAT Terminal Block
| Place of Origin | Germany |
| Brand Name | Beckhoff |
| Certification | COO & COC |
| Model Number | EL3068 |
Beckhoff EL3068 EtherCAT terminal block
,8-channel analog input terminal
,high-performance EtherCAT terminal block
EL3068 Beckhoff High-performance 8-channel Analog Input EtherCAT Terminal Block
The Beckhoff EL3068 is a high-density, high-performance 8-channel universal analog input terminal in the EtherCAT I/O system, engineered for precise and flexible acquisition of voltage and current signals from a wide range of industrial sensors and transmitters. Supporting ±10 V, 0–10 V, and 0–20 mA (including 4–20 mA) on each channel—individually configurable—the EL3068 delivers 16-bit resolution, integrated diagnostics, and seamless TwinCAT integration in an ultra-compact 12 mm wide housing. This makes it ideal for space-constrained applications requiring maximum I/O density without compromising accuracy or reliability.
Product Overview: Beckhoff EL3068
| Manufacturer | Beckhoff Automation |
| Model / Part Number | EL3068 |
| Type | EtherCAT Universal Analog Input Terminal |
| Number of Inputs | 8 independent channels |
| Resolution | 16 bits per channel |
| Sampling Rate | Up to 10 kHz per channel (depending on bus cycle time and configuration) |
| Typical Accuracy | ±0.1% of full scale at 25°C |
| Wire Break Detection | Yes – automatic detection of open circuits in current mode (0/4–20 mA) |
| Electrical Isolation | 500 V RMS between field side and EtherCAT logic/E-bus |
| Terminals | Push-in spring connection – supports solid/flexible wires from 0.14 mm² to 1.5 mm² (AWG 26–16) |
| Power Supply | Logic powered via EtherCAT E-bus; no external supply needed for electronics |
| Mounting | Standard 35 mm DIN rail, width only 12 mm |
| Certifications | CE, UL, KC, EAC, RoHS compliant |

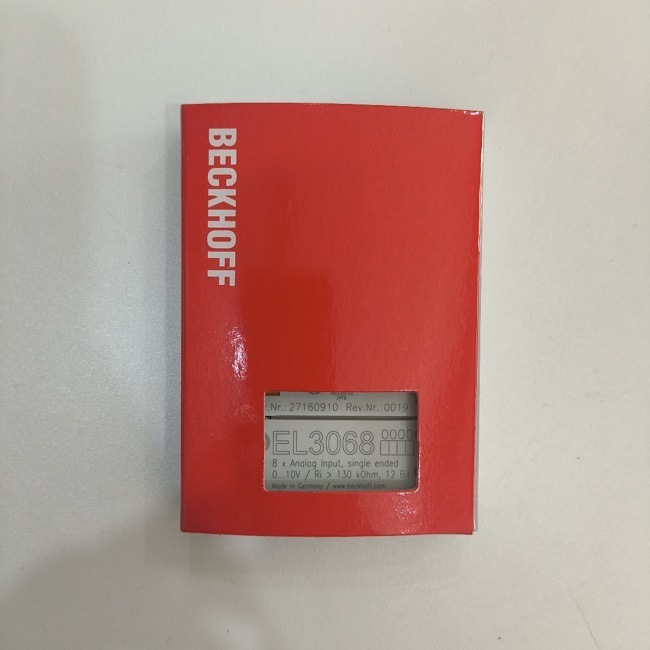

Product details pictures
