DI810 3BSE008508R1 ABB digital input module highly reliablecompatible AC 800M control system
| Place of Origin | Germany |
| Brand Name | ABB |
| Certification | COO & COC |
| Model Number | DI810 |
ABB DI810 digital input module
,ABB AC 800M compatible module
,ABB spare parts with warranty
DI810 3BSE008508R1 ABB digital input module highly reliablecompatible AC 800M control system
The ABB DI810 (Order Code: 3BSE008508R1) is a robust and reliable 16-channel digital input module designed for the ABB AC 800M programmable automation controller (PAC) within the System 800xA distributed control system (DCS). Engineered for high availability in demanding industrial environments, the DI810 accepts 24 V DC discrete signals from field devices such as limit switches, pushbuttons, proximity sensors, and relay contacts. With features like galvanic isolation, LED status indication per channel, and seamless integration into ABB’s engineering ecosystem, it delivers dependable signal acquisition for process automation in power generation, oil & gas, water treatment, mining, and manufacturing.
Product Overview: ABB DI810 (3BSE008508R1)
| Manufacturer | ABB Automation |
| Module Type | Digital Input Module |
| Part Number / Order Code | 3BSE008508R1 |
| Compatible Systems | AC 800M Controller, System 800xA DCS |
| Number of Input Channels | 16 isolated digital inputs |
| Input Voltage | 24 V DC (nominal), compatible with IEC 61131-2 Type 1/3 |
| Input Current | ~3 mA @ 24 V DC |
| Galvanic Isolation | Yes – between field side and backplane logic (>500 V RMS) |
| Response Time | Typically <1 ms (configurable filtering available) |
| Connection Type | Removable screw terminal block (supports 20–14 AWG wires) |
| Power Supply | Powered via AC 800M backplane – no external supply needed for logic |
| Mounting | Installed on standard AC 800M I/O rail (DIN rail compatible) |
| Certifications | CE, UL, CSA, IEC 61000-6-2/6-4 (EMC), RoHS compliant |

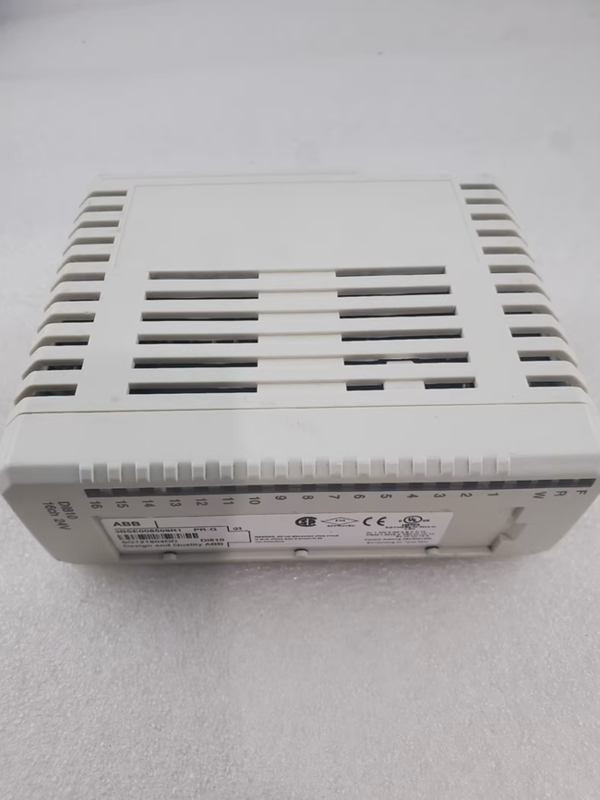

Product Images
