| Place of Origin: | U.K. |
| Brand Name: | Siemens |
| Certification: | COO & COC |
| Model Number: | 6ES7223-1BM22-0XA8 |
6ES7223-1BM22-0XA8 SIEMENS SIMATIC S7-1200 Digital Input/Output Hybrid Module
The Siemens SIMATIC S7-1200 digital Hybrid I/O module 6ES7223-1BM22-0XA8 is a high-performance and highly integrated expansion unit that integrates 8 digital input channels (DI) and 8 digital output channels (DO), all using source type (PNP) wiring. Designed specifically for small and medium-sized automation systems that require high-speed response, reliable signal processing and compact installation. As a classic general-purpose hybrid module in the S7-1200 series, it is widely applied in fields such as equipment control, production line monitoring, and mechanical automation.
Product Overview: Siemens 6ES7223-1BM22-0XA8
| Order Number | 6ES7223-1BM22-0XA8 |
| Series | SIMATIC S7-200 |
| Module Type | High-Density Digital Input/Output (DI/DO) Expansion Module |
| Digital Inputs | 32 channels, 24 V DC (operating range 15–30 V DC) |
| Input Compatibility | Supports both PNP (sourcing) and NPN (sinking) sensors |
| Digital Outputs | 32 channels, NPN transistor (open collector), 24 V DC |
| Output Current | Up to 0.75 A per channel, 6.0 A total group current (requires external 24 V DC supply) |
| Input Filter Delay | ~2.5 ms (optimized for noise immunity in industrial environments) |
| Connection Type | Six removable screw terminal blocks (Phoenix-style) 4 blocks for inputs (8 pins each) 2 blocks for outputs (8 pins each, including power terminals) |
| Mounting | Snap-on design—connects directly to compatible S7-200 CPUs or other expansion modules |
| Dimensions (W × H × D) | 196 mm × 80 mm × 62 mm |
| Logic Power Consumption | ~100 mA from CPU’s internal 5 V DC bus |
| Operating Temperature | 0°C to +55°C |
| Status Indicators | 32 green LEDs (inputs) + 32 yellow LEDs (outputs) |

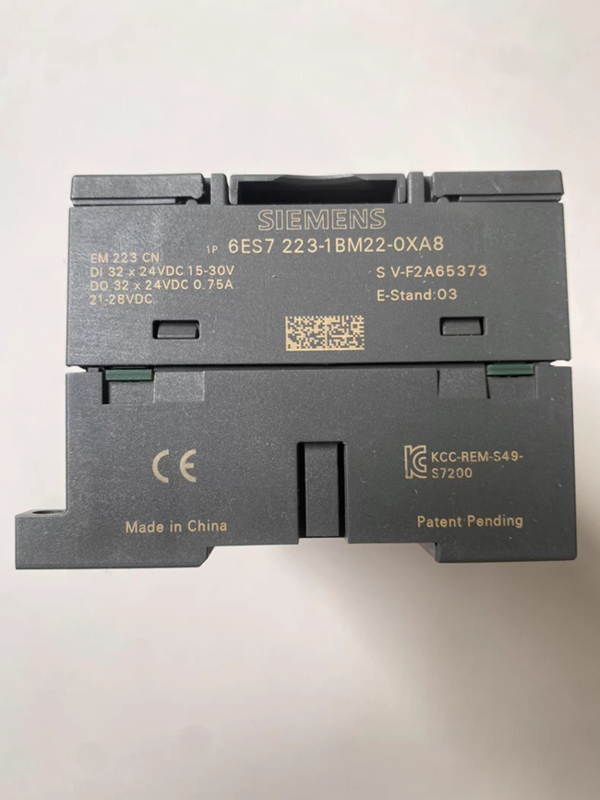

Product details pictures
