| Place of Origin: | U.K. |
| Brand Name: | Siemens |
| Certification: | COO & COC |
| Model Number: | 6ES7515-2RM02-0AB0 |
6ES7515-2RM02-0AB0 SIEMENS SIMATIC S7-1500R/H Redundant CPU High Availability Controller
The Siemens SIMATIC S7-1500R redundant CPU 6ES7515-2RM02-0AB0 is a redundant programmable logic controller (PLC) specifically designed for High Availability (HA) critical process control applications. As a core component of the S7-1500H series, this CPU must be used in pairs (primary/backup configuration), achieving real-time program and data mirroring through synchronous optical fiber links. In the event of hardware failure, power interruption or module failure, it can achieve a disturbure-free switching of less than 100 ms to ensure continuous production without interruption.
Product Overview: SIEMENS 6ES7515-2RM02-0AB0
| Manufacturer | Siemens AG – Digital Industries |
| Product Type | Redundant CPU for SIMATIC S7-1500R Systems |
| Order Number | 6ES7515-2RM02-0AB0 |
| CPU Name | CPU 1515R-2 PN (Enhanced Version) |
| Redundancy Architecture | 11 Hot Standby with Automatic Switchover |
| Processor | High-efficiency dual-core CPU optimized for real-time redundancy synchronization |
Engineering and integration advantages
A complete S7-1500R system includes:
Two 6ES7515-2RM02-0AB0 cpus (primary/backup);
Two synchronous modules 6ES7960-1AA04-0XA0 (inserted into the left side of the CPU);
Two LC multimode optical fibers (up to 10 meters in length, expandable to 300 meters);
Redundant PS power modules (such as 6EP1336-3BA00-0AA0);
Shared I/O station: All I/O modules are simultaneously connected to two cpus (via PN ring network or Y-Link).

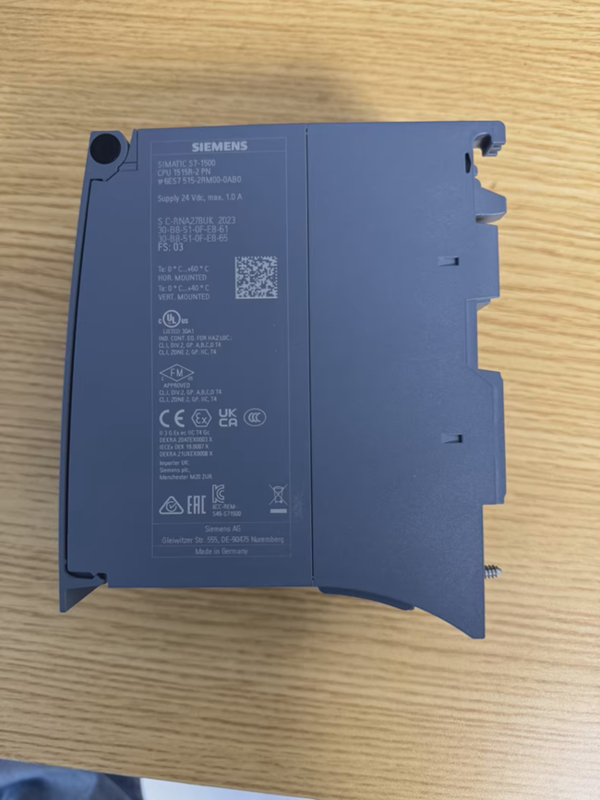

Product details pictures
