| Place of Origin: | Malaysia |
| Brand Name: | SICK |
| Certification: | COO & COC |
| Model Number: | GRTE18S-P2447 1069073 |

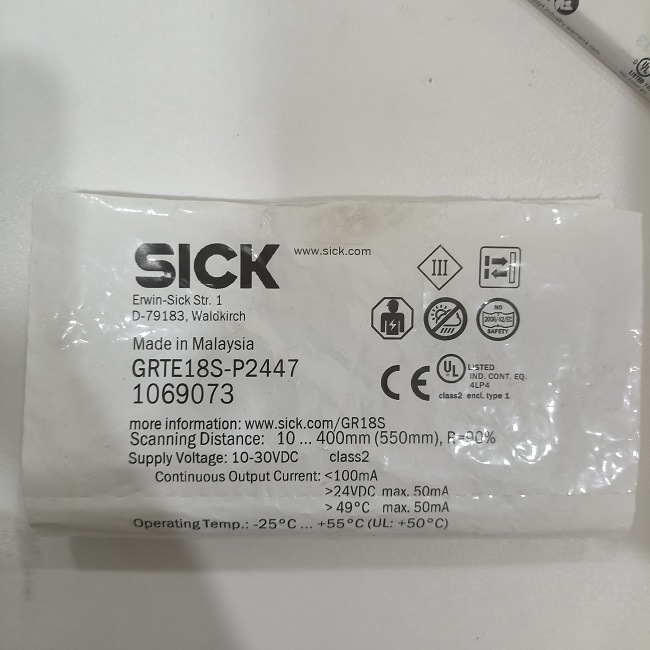

GRTE18S-P2447 SICK 1069073 High-performance Diffuse Reflection Photoelectric Sensor
The SICK GRTE18S-P2447 (Part Number: 1069073) is a compact, high-performance diffuse photoelectric sensor with background suppression (BGS), designed for reliable object detection in demanding industrial environments. Featuring IO-Link communication, a rugged stainless steel housing, and precise optical technology, this sensor delivers consistent performance in applications requiring exact detection of small parts, varying surfaces, or challenging mounting conditions—such as in automotive assembly, packaging, robotics, and material handling.
Product Overview: SICK GRTE18S-P2447 (1069073)
| Model | GRTE18S-P2447 |
| SICK Order No. | 1069073 |
| Sensing Principle | Diffuse with Background Suppression (Triangulation) |
| Light Source | Red LED, 650 nm |
| Max Sensing Range | Up to 470 mm (adjustable, target-dependent) |
| Resolution | Sub-millimeter repeatability at optimal range |
| Output | 1 x PNP + IO-Link (M12, 4-pin) |
| Switching Frequency | Up to 2,000 Hz |
| Housing Material | Stainless Steel (V4A / 1.4404) |
| Connection | M12 Connector, 4-pin |
| Protection Class | IP67, IP69K |
| Supply Voltage | 10–30 V DC |
| Operating Temp | –40°C to +60°C |
Product details pictures
