| Place of Origin: | Germany |
| Brand Name: | Siemens |
| Certification: | COO & COC |
| Model Number: | 6ES7153-2BA82-0XB0 |
6ES7153-2BA82-0XB0 Siemens ET200M Distributed I/O Interface Module 64-channel
The 6ES7153-2BA82-0XB0 is a high-performance distributed I/O interface module from the Siemens SIMATIC ET 200M series, model IM 153-2 HF (High Feature). As the master interface for the PROFIBUS DP fieldbus, this module can integrate up to 12 S7-300 series I/O modules into a distributed automation system, and is widely used in industrial control scenarios requiring high reliability and precise clock synchronization.
As a core component of the ET 200M system, the 6ES7153-2BA82-0XB0 not only supports redundant configuration and hot-swapping, but also features timestamp and isochronous synchronization modes, making it particularly suitable for applications in process industries, energy management, and critical manufacturing equipment where system availability requirements are extremely high.
Key Features & Benefits
High-Performance PROFIBUS DP Communication
Supports baud rates from 9.6 kbps to 12 Mbps
Up to 120 I/O modules per station (depending on configuration)
Short bus cycle times for real-time control
Designed for Harsh Industrial Environments
Operating temperature: 0°C to +60°C
Rugged metal housing with IP20 protection
High immunity to electromagnetic interference (EMC compliant per EN 61000)
Technical Specifications
| Model Number | 6ES7153-2BA82-0XB0 |
| Product Family | SIMATIC ET 200M |
| Module Type | IM 153-2 Interface Module |
| Communication Protocol | PROFIBUS DP (Class B) |
| Connector | 9-pin Sub-D female (RS-485) |
| Max. Baud Rate | 12 Mbps |
| Power Supply | Via backplane bus (from PS 307 or equivalent) |
| Mounting | DIN rail (in ET 200M rack) |
| Certifications | CE, UL, cULus, ATEX (for specific variants), KC |
| Redundancy Support | Yes (with S7-400H and Y-Link) |
| Hot Swapping | Supported |

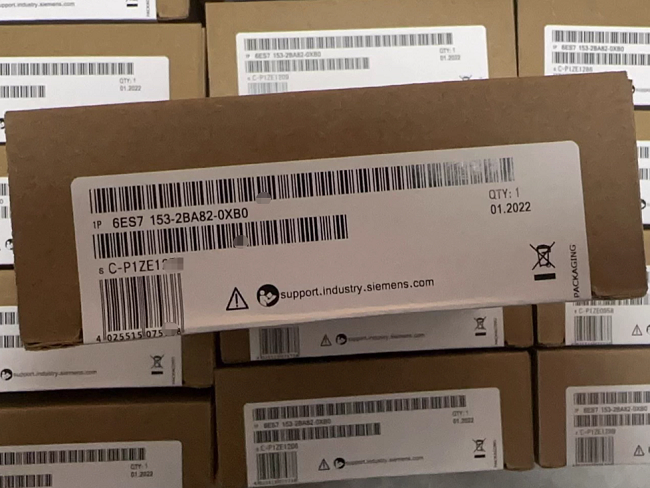

Product Images
