| Place of Origin: | Germany |
| Brand Name: | Schneider Electric |
| Certification: | COO & COC |
| Model Number: | TCSESM043F2CU0 |

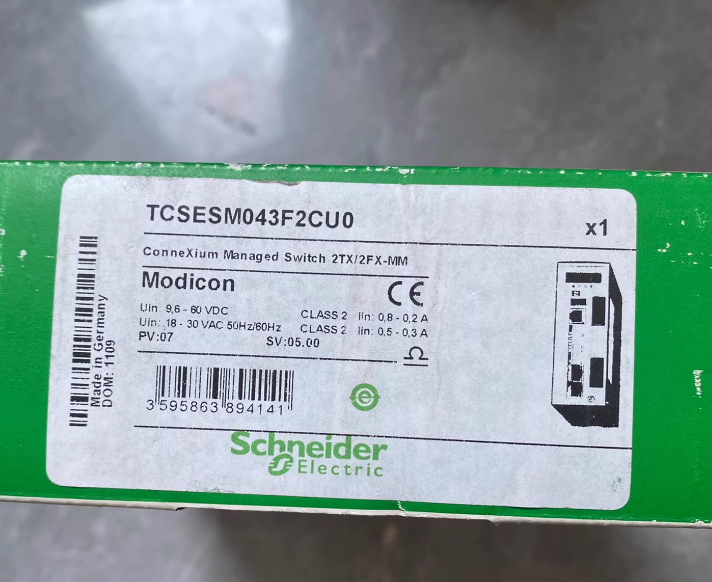

TCSESM043F2CU0 Schneider Electric ConneXium Managed Switch 12...48 V 7.7 W
The Schneider Electric TCSESM043F2CU0 is a high-performance managed Ethernet switch module designed specifically for integration into Modicon M580 ePAC and Quantum PAC programmable automation controller (PAC) backplanes. As part of the Modicon Ethernet Switch Module (ESM) family, this 4-port industrial switch enables deterministic, secure, and redundant communication directly within the controller rack—eliminating the need for external switches in many distributed I/O architectures.
With native support for PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850, the TCSESM043F2CU0 is ideal for mission-critical applications in power, water, oil & gas, and discrete manufacturing where network reliability, low latency, and cybersecurity are paramount.
| 7-port hybrid interface | 4 x RJ45 + 3 x SC optical ports, plug-and-play, eliminating the need for fiber optic transceivers |
| Industrial-grade hardware | IP30 metal housing, 9.6–60 VDC dual redundant power inputs, reverse polarity, short-circuit, and surge protection |
| Millisecond-level ring network | Supports MRP media redundancy protocol, with fault recovery time of <20 ms, ensuring real-time communication between PLCs and IEDs |
| Layer 3 network management | Web, CLI, SNMP v1/v2c/v3, RMON, QoS, VLAN, IGMP Snooping, port mirroring, and bandwidth limiting |
| Harsh environment resistance | -40°C to +75°C operating temperature, 5–95% non-condensing humidity, 15g shock/5g vibration resistance, and DIN rail mounting |
| Network security | MAC binding, 802.1X authentication, ACL access lists, and HTTPS/SSH encrypted management |
| Global certifications | CE, FCC, UL 508, UL 61010, ATEX Zone 2, RoHS/REACH, suitable for overseas EPC projects |
Product details pictures
