| Place of Origin: | Sweden |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | CI854BK01 3BSE069449R1 |
CI854BK01 3BSE069449R1 ABB Communication Module PROFIBUS-DP/V1 Interface
Product Overview
The ABB CI854BK01 (Order Number: 3BSE069449R1) is a redundant PROFIBUS-DP/V1 communication interface kit designed specifically for ABB 800xA and AC 800M control systems. This plug-and-play kit includes the CI854 communication module and the TP854 mounting base, enabling quick integration of PROFIBUS devices such as remote I/O, drives, valves, and instruments into DCS/PLC networks, enabling high-speed, stable data exchange at speeds of 9.6 kbit/s to 12 Mbit/s.
Core Advantages
- Redundant Design: Dual PROFIBUS ports support line and master redundancy, and can be combined with CPU redundancy and CEX-Bus redundancy (BC810) to increase system availability to 99.999%. - Industrial-grade durability: Operating temperature range of +5°C to +55°C, storage temperature of -40°C to +70°C, and EMI-resistant, suitable for harsh factory environments.
- Tool-less installation: Mounts on a standard DIN rail for direct connection to S800 I/O and third-party PROFIBUS devices, reducing wiring time by 30%.
- Low power consumption: ≤2W, reducing cabinet cooling costs and contributing to a greener factory.
- Intelligent diagnostics: Built-in LED status indicators and comprehensive diagnostic information support remote online monitoring, reducing fault location time by 50%.
Technical Parameters
Model: CI854BK01
Order Number: 3BSE069449R1
Protocol: PROFIBUS-DP/V1
Channels: 16 channels (expandable to 126 slaves)
Interface: RS-485, dual-port
Dimensions: 59 × 185 × 127.5 mm
Weight: Approximately 0.7 kg
Power Supply: 24 VDC from the system backplane
Power Consumption: <2 W
Compatible Systems: System 800xA 6.0.3.2 and above, Compact Control Builder 6.0.0-2 and above
Application Scenarios
- Petrochemical: Remote explosion-proof I/O and centralized valve control
- Power and Energy: Boiler and turbine auxiliary drive networking
- Pharmaceutical and Food: Distributed weighing, temperature, and flow meter data collection
- Rail Transit: Platform door and signal system data aggregation

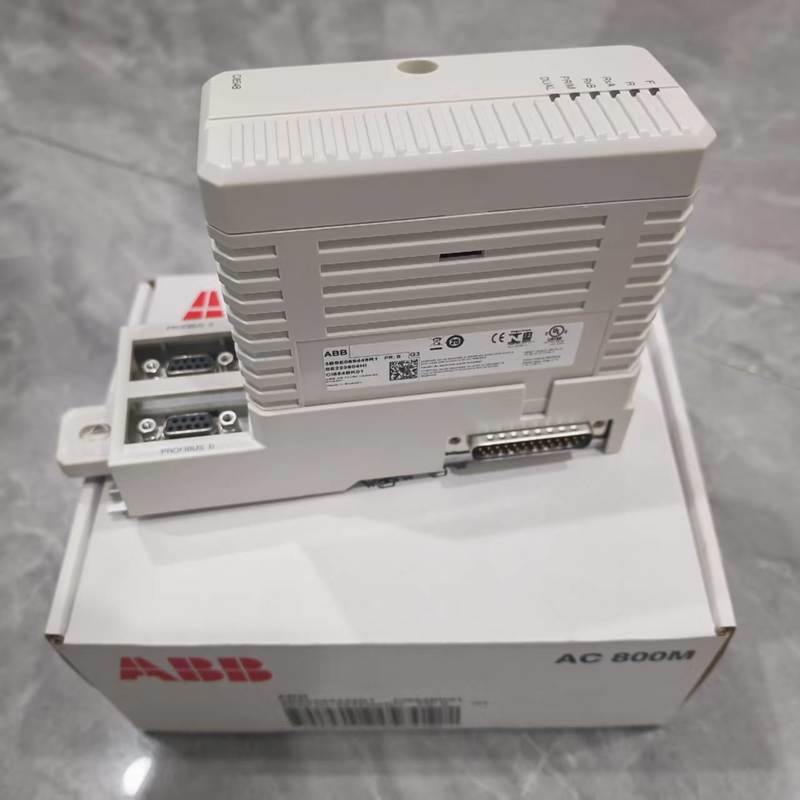

Product Images
