1.Overview of the 060G1041 Danfoss AKS3000

The Danfoss 060G1041 is a modular pressure transmitter from the MBS 5100 series. This high-precision pressure transmitter, with multiple marine approvals, is designed to provide reliable pressure measurement even in harsh environmental conditions, making it ideal for offshore applications and demanding industrial environments.

Its modular design, extensive approval coverage, and robust construction make it an ideal choice for applications requiring high reliability and accurate pressure monitoring.

Sealed pressure gauge principle—uses vacuum as a reference, unaffected by atmospheric pressure fluctuations, and boasts a low-pressure regulation accuracy of ±0.5% FS.

All-stainless steel laser welding—the wetted and housing are AISI 316L, without soft gaskets, IP65 protection, and stable operation from -40°C to +80°C.

4-20 mA two-wire system—high-level signal, strong interference resistance, and a transmission range of up to 1000 m without the need for an additional amplifier.

Global certifications—CE, UL, CRN, and GOST—allow single-source purchases to meet export requirements in Europe, the United States, the Middle East, and marine applications.

Plug-and-play—DIN 43650 Type A plug and Pg 9 cable gland allow on-site wiring in 30 seconds. Supports a wide range of 10-30 V DC power supplies.

2.Core Features:

Model: 060G1041
Series: AKS 3000
Pressure range: 0 – 25 bar (0 – 362.5 psi)
Overload pressure: 40 bar
Burst pressure: 100 bar
Accuracy (including linearity, hysteresis, and repeatability): ±0.5% FS
Output signal: 4-20 mA, two-wire
Supply voltage: 10-30 V DC (polarity protected)
Load resistance: ≤ (U-10)/0.02 Ω
Response time (10-90%): < 4 ms
Long-term drift: ≤ ±0.2% FS/year
Temperature compensation range: 0 – +80°C
Operating temperature: -40 – +80°C
Storage temperature: -50 – +85°C
Pressure connection: G 3/8 Male EN 837
Electrical connection: DIN 43650 Type A plug, Pg 9
Ingress protection: IP65
Wetted materials: AISI 316L
Case Material: AISI 316L
Weight: ≈ 0.18 kg
Certifications: CE, UL, cULus, CRN, GOST

Rugged and Reliable for Harsh Environments: The product is designed with high shock and vibration resistance (>10 million pressure cycles) and features high EMC/EMI protection, ensuring stable operation in harsh industrial and marine environments.

High Accuracy and Stability: Utilizing hermetically sealed MEMS technology, it not only delivers a typical accuracy of 0.1%, but also ensures high reliability and stability for long-term measurements.

Flexible Configuration and Compatibility: Adjustable zero and span facilitates field calibration. It is approved for use with all common refrigerants, ensuring strong compatibility.

Modular Design and Safety: The modular design facilitates installation and maintenance. Some variants are also ATEX Zone 2 certified for use in potentially explosive atmospheres.

Typical Applications
Chiller evaporator/condenser pressure monitoring
Heat pump high/low pressure switching and defrost control
Marine refrigerated container refrigeration systems
Industrial chillers, laser cooling units
EC fan speed control for row-level air conditioning terminals in data centers

Compatibility and Expansion

Plug-in compatibility with Danfoss controllers such as EKC, EKD, MCX, and ADAP-KOOL®. Different ranges within the same series: 060G1040 (-1-6 bar) and 060G1049 (-1-20 bar) are interchangeable, enabling standardization of spare parts.

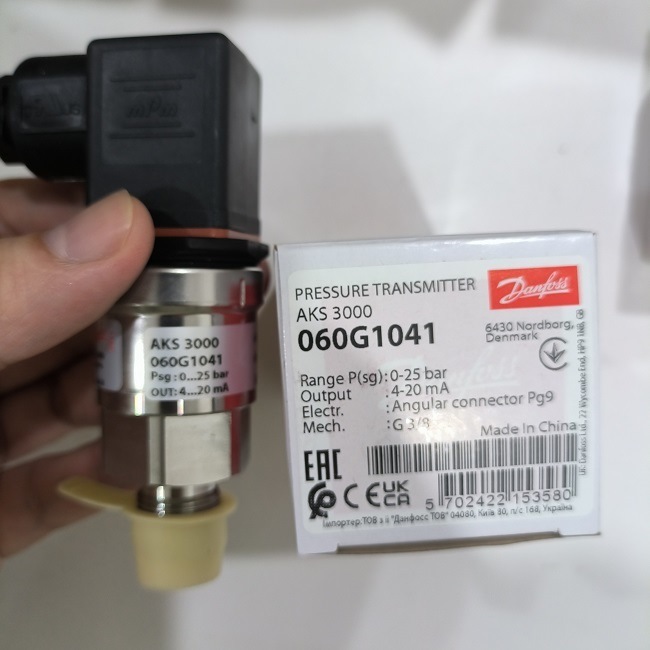

3.Product details pictures
