6ES7332-5HF00-0AB0 Siemens SIMATIC S7-300 Analog Output SM 332 8AO

6ES7332-5HF00-0AB0 Siemens SIMATIC S7-300 Analog Output SM 332 8AO

1.Overview of the 6ES7332-5HF00-0AB0 Siemens

The Siemens 6ES7332-5HF00-0AB0 is an analog output module (model: SM 332) from the SIMATIC S7-300 series. Its primary function is to convert digital signals in automated control systems into precise analog signals (current or voltage) to drive actuators (such as valves and speed controllers). It features eight analog output channels, supports potential isolation, and integrates extensive diagnostic features, making it suitable for industrial environments requiring high-reliability analog control.

The 6ES7332-5HF00-0AB0 is a high-performance analog output module for the Siemens SIMATIC S7-300 rack-mount PLC system, commonly known as the "8-channel AO module." It accurately converts digital values ​​from the CPU into voltage or current signals commonly used in industrial settings. It is used for continuous control of analog devices such as valves, frequency converters, actuators, and recorders. It is an indispensable "last mile" drive unit in process control, manufacturing automation, and environmental protection equipment.

2.Core Features:

Order Number: 6ES7332-5HF00-0AB0
Output Channels: 8, U/I can be mixed
Resolution: 12 bits (voltage) / 11 bits + sign bit (current)
Conversion Time: ≤0.8 ms/channel
Load Capacity: Voltage ≥1 kΩ; Current ≤500 Ω (10 mH inductive)
Cable Length: Shielded cable, maximum 200 m
Isolation: 500 V AC, channel to backplane & L+
Power Supply: 24 V DC (20.4…28.8 V), reverse polarity protected
Current Consumption: 340 mA (from L+); 100 mA (from backplane bus)
Power Consumption: Typical 6 W
Dimensions/Weight: 40 × 125 × 117 mm / 326 g
Front Connector: 40-pin, screw or spring-loaded
Approvals: CE, UL, cULus, FM, ATEX, RoHS

2. Accuracy and Drift
Basic error: ±0.4% (25°C)
Temperature drift: ≤ 0.01%/K
Operating temperature: 0…+60°C
Storage temperature: -20…+70°C

3. Diagnostics and Protection
Parameterized diagnostic interrupts for wire break, short circuit, overload, and undervoltage
Red SF LED group fault indication
Voltage output short-circuit proof (current limited to 25 mA)
Current output open-circuit proof (voltage-resistant to 18 V)
Hot-swappable (requires active backplane)

4. Power Supply Requirements
Load voltage L+: 24 V DC (20.4…28.8 V)
Reverse polarity protection: Yes
Current consumption: ≤ 340 mA (from L+); ≤ 100 mA (from backplane 5 V)

5. Software Features (STEP 7 / TIA Portal)
Independent measuring range per channel, diagnostic enable, substitute value setting
Supports 32 Online languages
Can set substitute values, hold last values, or clear outputs
Diagnostic information is automatically written to the CPU diagnostic buffer

6. Certifications and Environmental Compliance
CE, UL, cULus, FM, ATEX Zone 2/22, RoHS, WEEE

7. Typical Applications
Process Control: Control valves, variable frequency pumps, temperature/pressure/flow actuators
Manufacturing lines: Tension, position, and speed simulation settings
Environmental Protection & Energy: Dosing pumps, fan dampers, desulfurization and denitrification ammonia injection
Test bench: Programmable power supply for circuit breaker characteristic testing and motor factory testing

The 6ES7332-5HF00-0AB0, with its 8-channel isolation, 12-bit accuracy, 0.8 ms fast response time, and comprehensive diagnostic protection, has become a classic analog output module for the S7-300 platform. Whether for new projects or expansion of existing systems, it enables PLCs to accurately communicate, delivering digital computation results stably and securely to every analog actuator.

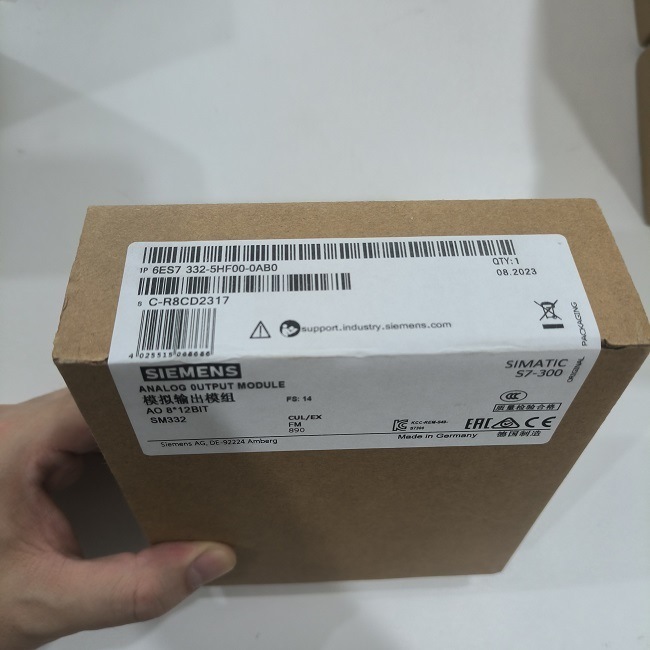

3.Product details pictures
