2090-CPWM4E2-14TR Allen-Bradley MP-Series 0.5m Length Transition Cable

2090-CPWM4E2-14TR Allen-Bradley MP-Series 0.5m Length Transition Cable

1.Overview of the 2090-CPWM4E2-14TR Allen-Bradley

The Allen-Bradley 2090-CPWM4E2-14TR, the flagship of Kinetix's "single-cable" design, features a 0.5 m hybrid servo cable. It seamlessly connects the threaded DIN (M4) power and brake connectors on the motor side to the bayonet (E2) receptacle on the Kinetix 5700/5500 drive. With an extremely short 0.5 m cable length, it eliminates the need for three cables (power, feedback, and brake) for servo systems under 3 kW, achieving true single-cable plug-and-play operation.

The Allen-Bradley 2090-CPWM4E2-14TR, with its "single, extremely short, and highly flexible" design, eliminates the cluttered "three-cable era" for servo systems under 3 kW. It is the key to Kinetix users achieving high-speed, high-precision, and maintenance-free operation.

2.Core Features:

1. Key Parameters
Function: SpeedTec threaded DIN (M4) on the motor side → E2 bayonet connector on the drive side. A single cable transmits power, brake, and digital servo feedback.
Rated voltage/current: 1000 V, 25 A @ 40°C (14 AWG power core)
Conductors: 4 x 14 AWG (power) + 2 x 14 AWG (brake) + 4 x 22 AWG (DSL feedback pair) + 2 x 18 AWG (thermal protection)
Outer diameter: ≈ 13 mm
Jacket: Orange TPE, resistant to oil, cutting fluid, and UV radiation, -30°C to +90°C
Shielding: Aluminum foil + tinned copper braid, 100% coverage, excellent EMC/EMI performance
Bend radius: Continuous drag chain 10 x OD (≈130 mm), lifespan ≥ 8 x 10⁶ cycles
Protection rating: IP65 (properly locked)
Mating and unmating lifespan: ≥ 500 cycles
Certification: UL 2580, CE, RoHS, DESINA color coding
Weight: ≈ 0.18 kg (0.5 m)

2. Core Functions
Single-cable hybrid transmission: Power, brake, and DSL feedback are all on the same cable, reducing cabinet cabling by 40% and weight by 35%.
Low-capacitance design: Feedback pair capacitance ≤ 39 pF/m, supporting high-resolution protocols such as Nikon 24-bit, Tamagawa 17-bit, and Hiperface DSL with zero bit errors.
SpeedTec quick-locking: DIN thread on the motor end, E2 bayonet on the drive end, mating in 5 seconds, increasing field efficiency by 30%.
Continuously flexible TPE outer jacket: Drag chain-grade, 8×10⁶ flex cycles, -30…+90°C, suitable for high-frequency bending applications such as six-axis robots and high-speed placement machines.
Double shielding: Aluminum foil + tinned copper braid, 100% coverage, ensuring EMC performance under high dynamic conditions.
1000 V Insulation: A single cable covers both 200 V and 400 V servo systems, making it universally compatible.

Pre-installed connectors, 100% continuity and withstand voltage tested at the factory, ready for immediate operation.

Global certifications: UL, CE, RoHS, meeting export requirements to North America, Europe, and Asia.

3. Typical Applications

Single-cable upgrades for six-axis robot joint motors; High-speed placement machines, packaging machines, and lithium battery winding equipment; Fourth- and fifth-axis rotary tables for CNC machine tools; Automatic warehouse stackers and conveyor line servo rollers; Sanitary equipment such as those used in food, beverage, and pharmaceutical applications requiring frequent washdowns.

4. Ordering Information
Model: 2090-CPWM4E2-14TR (0.5 m)
Available Lengths: -01 (1 m), -02 (2 m), -05 (5 m), and -10 (10 m)

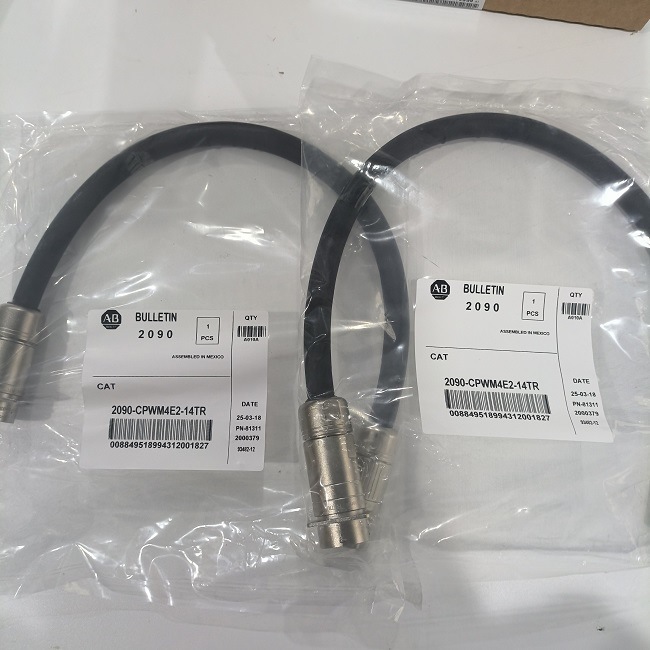

3.Product details pictures
