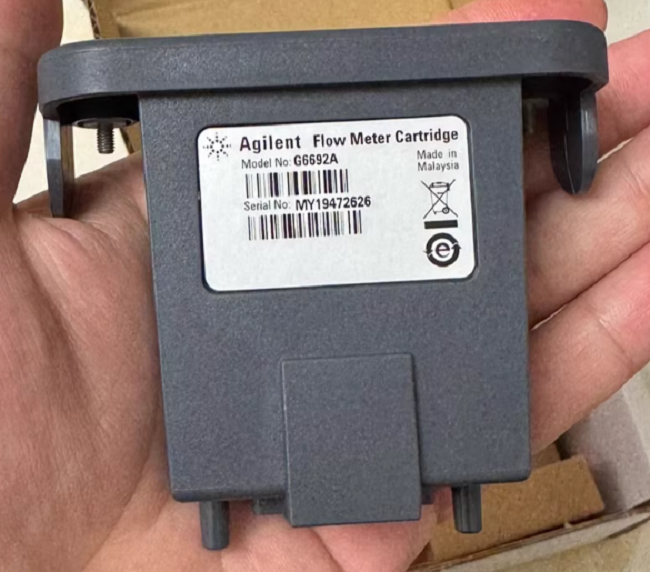

G6692A AGILENT TECHNOLOGIES Replaceable Calibration Module For ADM Flow Meters

G6692A AGILENT TECHNOLOGIES Replaceable Calibration Module For ADM Flow Meters

1.Overview of the G6692A AGILENT TECHNOLOGIES

The AGILENT TECHNOLOGIES G6692A is a replaceable calibration module designed specifically for ADM flowmeters, ensuring consistent gas flow measurement accuracy and compliance. This module features quick, tool-free installation and removal, requiring only annual replacement to restore factory-level calibration, eliminating the downtime and shipping costs associated with returning the entire meter to the factory. It's a cost-effective choice for efficient laboratory operations.

Constructed from a new composite material, the module automatically switches across the full range of 0.5–750 mL/min, achieving an accuracy of ±2% of reading or ±0.2 mL/min (whichever is greater). With an operating temperature range of 0–45°C and a storage temperature range of –25–45°C, it adapts to most laboratory environments. A built-in intelligent reminder function automatically reminds users of replacement intervals via the main unit's OLED screen. A USB interface allows for one-click firmware updates and data export, simplifying maintenance through a paperless process. As a core consumable in the CrossLab CS series, the G6692A shares the same handheld platform as the G6691A ADM flowmeter and the G6693A electronic leak detector, allowing users to plug and unplug as needed for multi-functionality. Choosing the G6692A means choosing Agilent's genuine quality, NIST-traceable calibration, and global technical support, ensuring long-term, stable, and reliable flow for your gas chromatography, mass spectrometry, or any experiment requiring precise gas control.

2.Core Features:

1. Technical Specifications
Flow Rate Range: 0.5–750 mL/min, Auto-Range Switching
Accuracy: ±2% of reading or ±0.2 mL/min (whichever is greater)
Line Temperature Range: -62°C to 110°C
Operating Temperature: 0°C to 45°C; Storage Temperature: -25°C to 45°C
Adopts a new composite material for lightweight and impact resistance
Built-in calibration countdown timer, with automatic replacement interval notification on the main unit's OLED display
One-click firmware upgrade and data export via USB for paperless maintenance

2. Feature Highlights
Tool-free, 10-second quick disassembly and assembly, allowing independent lab personnel to perform tasks independently
Shares the same handheld platform as the G6691A ADM flowmeter and G6693A electronic leak detector, achieving "one device, multiple functions"
Original packaging guarantees NIST traceability, with global technical support and CrossLab The service network covers a wide range and provides long-term, stable and reliable flow guarantee for experiments such as gas chromatography and mass spectrometry that require precise gas control.

The 6692A integrates several advanced features to improve test efficiency and system stability:

Fast Programming Response: Supports analog control of output voltage/current, with fast up/down programming capabilities, significantly shortening test cycles.

Intelligent Thermal Control and Protection: Fan speed control optimizes heat dissipation and reduces operating noise. Built-in overvoltage (OVP), overcurrent (OCP), and overtemperature (OTP) protections ensure device under test (DUT) safety.

Remote Control and Automation: Standard GPIB and SCPI (Standard Commands for Programmable Instruments) interfaces support remote programming and automated test system integration, while also providing front-panel control and calibration capabilities.
