General Electric IC695PNC001 PACSystems RX3i PROFINET Controller Module Fast Response

General Electric IC695PNC001 PACSystems RX3i PROFINET Controller Module

Basic product information

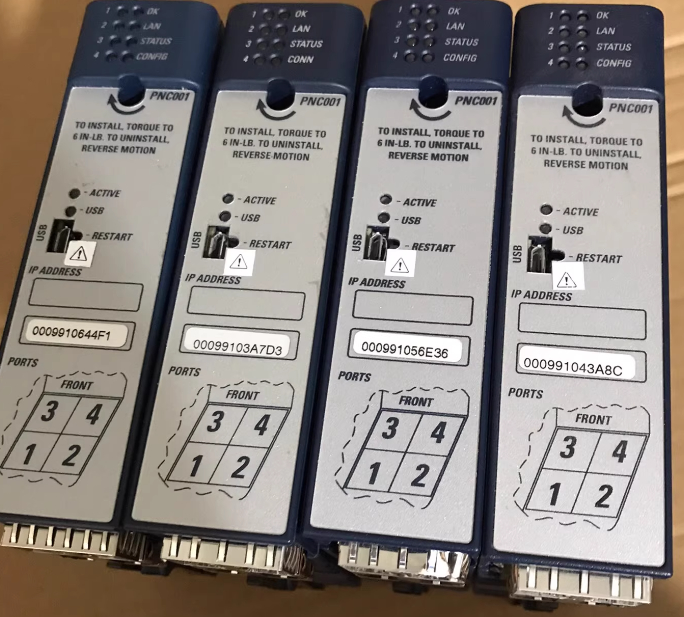

The GE IC695PNC001, a high-performance PROFINET controller for modern automated production lines, brings millisecond-level real-time communication and flexible topology expansion capabilities to the RX3i PACSystems platform. Compliant with the PROFINET v2.35 specification, this module supports both IRT (Isochronous Real-Time) and RT (Real-Time) protocols, enabling simultaneous transmission of motion control, process data, and diagnostic information on the same network. This meets the demands of demanding scenarios such as automotive assembly, high-speed packaging, and collaborative robotics.

Key Highlights
• Ultra-fast Response: A built-in 400 MHz ARM processor delivers update cycles as low as 250 µs and jitter < 1 µs, ensuring drift-free multi-axis servo synchronization.
• Flexible Expansion: Two built-in RJ45 ports support star, ring, and linear topologies; up to 128 PROFINET devices can be connected in series without an external switch.
• Zero-Downtime Maintenance: Supports Media Redundancy (MRP) and System Redundancy (S2), with a ring network failover time of < 200 ms, ensuring continuous production.
• In-Depth Diagnostics: A web server and SNMP protocol display each device's port status, bandwidth utilization, and CRC error count in real time, enabling rapid location of faulty nodes.
• Seamless Integration: Directly access RX3i high-speed I/O and motion control modules via PROFINET IRT, eliminating the need for additional gateways and reducing engineering complexity. • Green and Safe: Compliant with RoHS and REACH environmental directives, operating temperature range from -40°C to +70°C, and mean time between failures (MTBF) > 300,000 hours, it withstands harsh industrial environments.

Typical Applications
Automotive assembly plants, lithium battery winding, high-speed food filling, high-bay storage shuttles, and semiconductor wafer handling.

Installation and Configuration
The standard one-slot width allows for direct insertion into the RX3i rack backplane. Using Proficy Machine Edition software, one-click import of the GSDML file automatically identifies I/O mapping, enabling network commissioning in 30 minutes.
