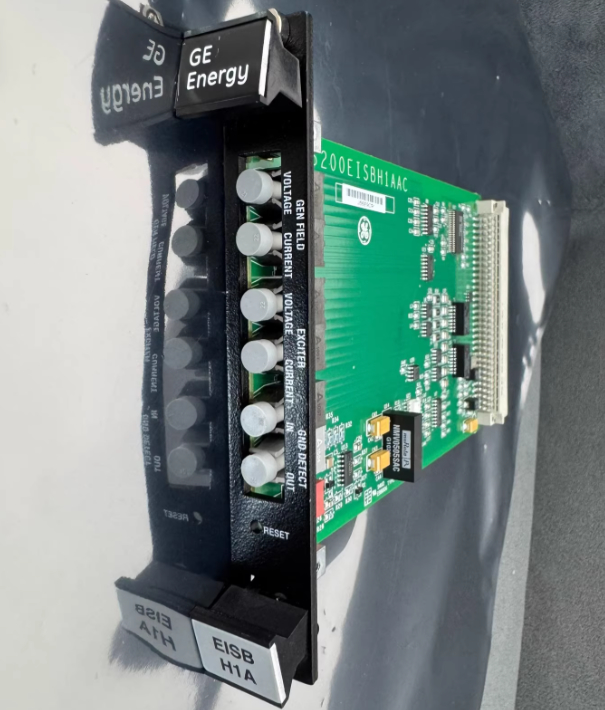

The GE IS200EISBH1A is the core communication interface board in General Electric's EX2100 series excitation control system. Designed specifically for synchronous generator excitation equipment, it seamlessly integrates into the control architecture of gas turbines, steam turbines, and other large rotating units. Known for its industrial-grade reliability, this module consistently delivers millisecond-level response times in demanding environments such as power plants, oil and gas, and metallurgy, ensuring safe grid connection and efficient power generation.

Highlight
As a single-slot, 3U plug-in unit, the IS200EISBH1A uses GE's proprietary ISBus protocol to establish high-speed data channels between the M1, M2, and C control modules, enabling real-time exchange of key parameters such as excitation current, voltage, and power factor. Six onboard fiber optic ports directly connect to the generator field winding and the DSPX main control module, suppressing electromagnetic interference and enabling lossless signal transmission over long distances. An RS-232C maintenance port facilitates on-site diagnostics, parameter tuning, and firmware upgrades using Toolbox or a handheld terminal, enabling rapid fault location without disassembling the unit.

Application
The IS200EISBH1A features a maintenance-free design without jumpers or fuses, and all components meet the wide industrial temperature range of -40°C to +70°C. Its gold-plated backplane connector, compliant with DIN 43650 anti-vibration standards, maintains a low-impedance connection in the μΩ range even in environments with sustained vibration, significantly reducing false alarms caused by contact oxidation. The module is also hot-swappable, allowing replacement without shutting down the unit, minimizing downtime.

Summary
For systems requiring redundant excitation channels, the IS200EISBH1A's built-in master/slave switchover logic completes arbitration within 10 ms, ensuring stable generator voltage and preventing grid disconnection. Furthermore, the card transmits insulation monitoring signals to the ground fault detection module (EGDM) in real time, triggering an alarm in the event of a ground fault to prevent secondary damage to the excitation circuit.
