| Place of Origin: | Sweden |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | PM511V16 3BSE011181R1 |
ABB PM511V16 3BSE011181R1 Processor Module Advant OCS/AC400/AC500 Version 2.3
Overview
ABB PM511V16 3BSE011181R1 is a high-performance 32-bit processor module designed for the Advant OCS and AC 400/AC 500 distributed control systems. It delivers deterministic real-time control, redundant communication paths, and hot-swap capability for critical process industries such as power generation, oil & gas, and chemical manufacturing.
Key Features
• Part Number: 3BSE011181R1
• CPU: 32-bit RISC, 32 MB RAM, 16 MB Flash
• I/O Scan Time: ≤ 1 ms for 1 024 digital I/O points
• Communication: Dual Ethernet, RS-232, RS-485, CAN, and support for CI522A, CI541 fieldbus modules
• Redundancy: Dual PM511V16 units can run in hot-standby mode with automatic switch-over < 50 ms
• Operating Temperature: 0 °C to +70 °C (extended range option available)
• Certifications: CE, UL, cUL, ATEX Zone 2, IECEx, SIL 2 capable
Applications
• Turbine control & protection systems
• Offshore platform topside automation
• Refinery distillation and reactor loops
• Power plant balance-of-plant (BOP) automation
Compatibility
The PM511V16 3BSE011181R1 is fully backward-compatible with existing PM511V08 and PM510V16 racks and shares the same slot footprint. All user applications created in ABB Control Builder F or Automation Studio can be downloaded without recompilation.

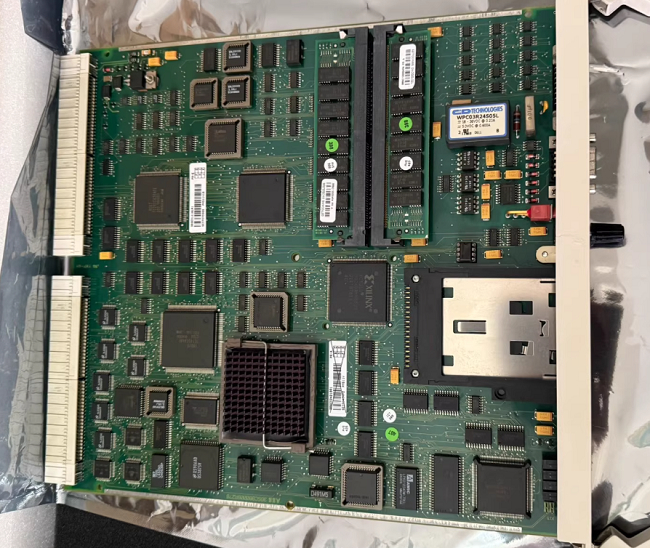

Product details pictures
