| Place of Origin: | USA |
| Brand Name: | General Electric |
| Certification: | COO & COC |
| Model Number: | IC694PWR331 |
General Electric IC694PWR331 RX3i Backplane Power Module 24 VDC 30W Output
Product Overview
The IC694PWR331 is a high-capacity remote backplane power supply module designed by GE specifically for PACSystems™ RX3i PLCs. It provides a 24 VDC input and 30 W of total output power, providing a stable, redundant power supply for I/O modules, communication modules, and the CPU.
Key Features
• Input voltage: 24 VDC (18–30 VDC wide range)
• Three isolated outputs:
– 5 VDC / 6 A, 30 W maximum
– 24 VDC (isolated) / 0.8 A, 20 W maximum
– 24 VDC (relay) / 0.8 A, 15 W maximum
• High capacity: 30 W total continuous power, supporting large I/O expansion
• Remote backplane design: Suitable only for the RX3i high-speed serial expansion backplane
• LED status indicators: PWR (power), OK (system normal), and RUN (operating mode) for easy at-a-glance status
• Rugged industrial design: -40…+70°C operating temperature, CE/UL/cUL certified
Installation and Compatibility
• Occupies one backplane slot, hot-swappable, allowing power supply replacement without downtime
• Compatible with IC694CHSxxx This series expansion backplane is seamlessly compatible with the full range of IC695 and IC694 I/O modules.
• Recommended accessories: 0.15 m extension cable IC693CBL312 and terminal plug IC693ACC307
Typical Applications
• Continuous process control in the petroleum, chemical, and pharmaceutical industries
• Discrete automation in automotive, packaging, and logistics
• SCADA systems in energy, municipal administration, and water treatment

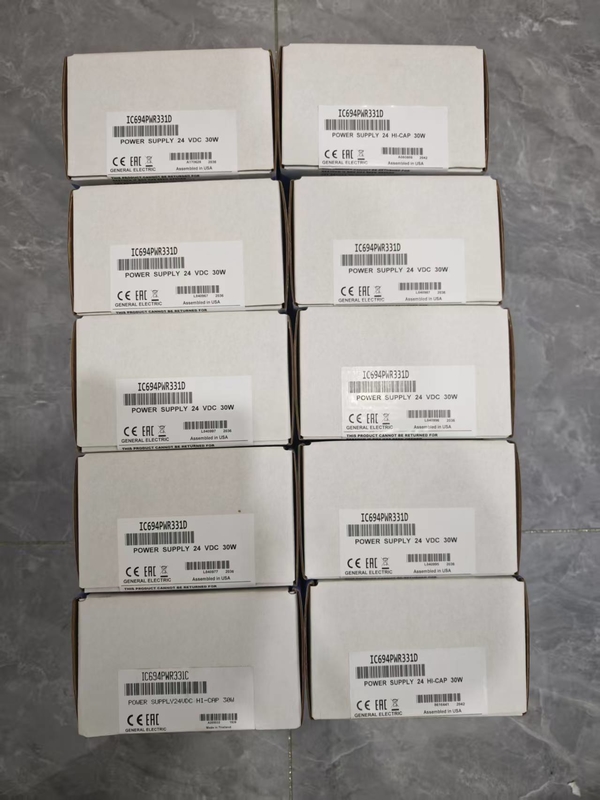

Product details pictures
