| Place of Origin: | Germany |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | TA2X3.2-65 |
TA2X3.2-65 ABB TThermal overload relay Provide efficient reliable motor protection
ABB TA2X3.2-65 is a high-performance thermal overload relay, specifically designed to protect small and medium-sized three-phase asynchronous motors from overload and phase loss faults. This model supports one normally open (NO) auxiliary contact and features high-precision thermal protection. It is widely used in industrial automation, building automation and infrastructure projects. It can be used in conjunction with contactors to provide a comprehensive motor protection solution, and it features a compact design and high reliability.
Key features
Adopting the principle of bimetallic strip thermal sensing, the tripping characteristic complies with the IEC/EN 60947-4-1 standard (Class 10A), ensuring that the power supply of the motor is cut off in time when overloaded.
It is equipped with a built-in three-phase current imbalance detection mechanism. Once any phase is disconnected, it will trigger a trip to prevent the motor from burning out due to single-phase operation.
Basic parameters
| Model | TA2X3.2-65 |
| Series | ABB TA2X series thermal overload relays |
| Rated operating current | (Ie) 3.2-65 A (AC- 3,400 V) |
| Rated insulation voltage (Ui) | 690 V AC |
| Reset mode | Automatic reset (default), manual reset of attachments (such as HHRM -11) |
| Installation method | 35mm DIN rail or assembled on ABB A series contactors |
| Operating temperature range | -25°C to +55°C |
| Storage temperature | -40°C to +85°C |
| Weight | ≈ 0.18 kg |

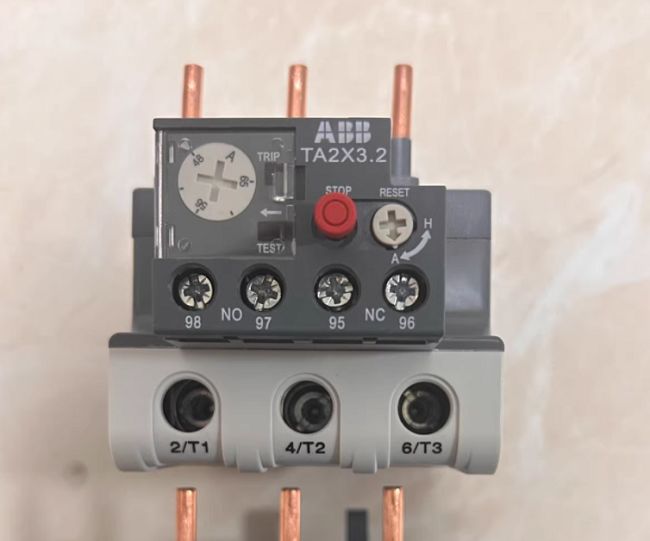

Product Images
