| Place of Origin: | Germany |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | AFIN-01C |
AFIN-01C 64693808 ABB Specialized Freelance DCS systems Efficient data
ABB AFIN-01C is an efficient interface module specifically designed for ABB Freelance distributed control systems (DCS). This module is designed to enhance the internal data processing capabilities and external communication capabilities of the system, support multiple industrial communication protocols, and can be seamlessly integrated into the existing Freelance control architecture. AFIN-01C is widely used in industries such as power, chemical engineering, and water treatment, and is suitable for application scenarios that require high reliability and flexibility.
Product Overview: ABB AFIN-01C (64693808)
| ABB Order Code | AFIN-01C |
| Manufacturer Part Number | 64693808 |
| System Compatibility | ABB AC 800F / Freelance DCS |
| Module Type | PROFIBUS DP Master/Slave Interface |
| Fieldbus Protocol | PROFIBUS DP (Decentralized Periphery) per IEC 61158/61784 |
| Communication Speed | Adjustable from 9.6 kbps up to 12 Mbps |
| Max. Supported Slaves | Up to 126 devices on a single segment (depending on configuration) |
| Electrical Interface | RS-485, 9-pin D-SUB (male) connector with integrated termination and biasing |
| Galvanic Isolation | Yes – ≥500 V AC RMS between fieldbus and backplane |
| Redundancy Support | Compatible with redundant AC 800F CPU configurations (requires dual AFIN modules) |
| Power Consumption | ~1.8 W (supplied via backplane) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL, CSA, IEC 61000-6-2/4 (EMC), IEC 61010 (safety) |

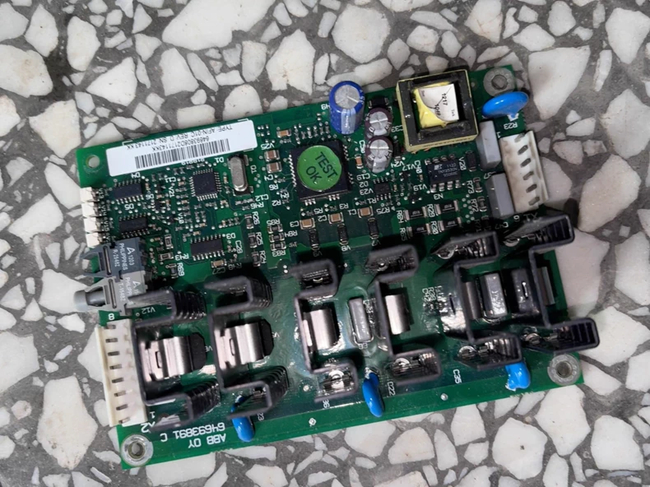

Product Images
