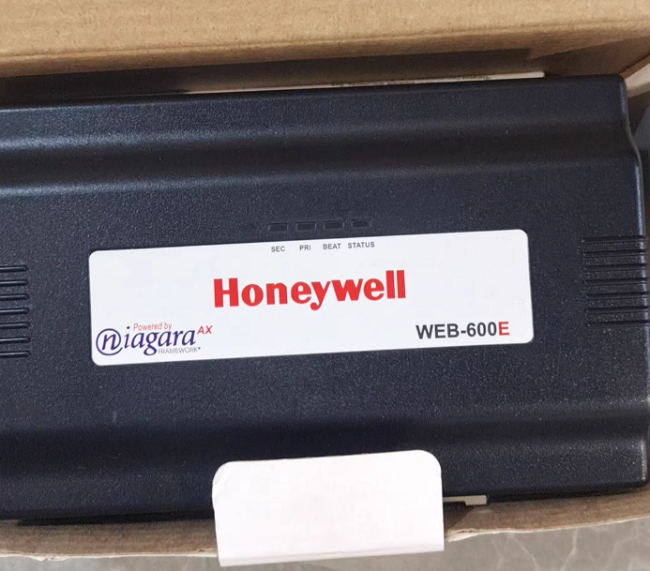

Honeywell WEB-600E Network Controllers 62-0433 Control And Manage External Devices

Honeywell WEB-600E Network Controllers Part No. 62-0433 Control and Manage External Devices

Product Positioning
The WEB-600E is a compact controller/server platform in the Honeywell WEBsAX™ family. Built on the NiagaraAX® Framework, it integrates automated control, real-time monitoring, data logging, alarm management, scheduling, and web services. Designed for local/regional control in small and medium-sized facilities, remote sites, or large distributed systems, it can operate standalone or seamlessly integrate with the enterprise-level management platform WEBStation-AX.

Core Features
• Multi-Protocol Gateway: Built-in drivers support BACnet/IP & MS/TP, LonWorks, Modbus RTU/TCP, oBIX, SNMP, HTTP/XML, and more, enabling seamless device connectivity.
• Web Visualization: The standard Niagara web user interface eliminates the need for client installation; real-time graphs, historical trends, alarms, and energy consumption data can be viewed through a browser.
• Data Services: 128MB of flash memory for local historical storage with CSV/JSON export support; expandable microSD or USB storage is supported. • Energy Management: A built-in 100-point data analysis suite supports three energy efficiency rules, automatically generating energy consumption baselines and abnormality alerts.
• Remote Maintenance: Supports OpenVPN, HTTPS, and SSH; Niagara Workbench remote online debugging and firmware upgrades, reducing on-site service visits.

Hardware Specifications
Processor: IBM PowerPC 440 524 MHz 32-bit
Memory: 256 MB DDR2 (128 MB economy version optional)
Flash: 128 MB SLC NAND
Real-time clock: Supercapacitor with 3-day retention, optional 5-minute UPS module

Communication Interfaces:
• Ethernet x2: 10/100 Mbps, RJ-45, supports dual network segments or link redundancy
• RS-485 x1 (non-isolated, motherboard terminal)
• RS-232 x1 (9-pin D-Sub)
• USB 2.0 x1 (Type A, for storage or Wi-Fi adapter)
Expansion Slots: 2 communication card slots, compatible with modules such as LON-FTT10, RS-232/485, EnOcean, and Wi-Fi
I/O Expansion:
• IO-16-H (16 points: 8UI/4DO/4AO)
• IO-34-H (34 points: 16UI/10DO/8AO)
• Each WEB-600E supports up to 1 IO-34-H or 4 IO-16-H modules, depending on the required combination.

Power Supply and Installation
Power Supply: Standard models require an external 24 V AC/DC (±20%) or 90–263 V AC (universal power supply module NPB-PWR-UN-H).
Power Consumption: Typical 5 W, Maximum 8 W
Mounting: DIN rail or wall mount; Dimensions: 160 mm × 122 mm × 61 mm, Weight: 0.6 kg, Plastic enclosure: IP20, Natural convection cooling
Operating Temperature: 0°C…+50°C; Humidity: 5%…95% RH non-condensing
Certifications: UL 916, CE, FCC Part 15 Class A, C-tick

Typical Application Scenarios
• Small businesses: Chain stores, restaurants, and pharmacies, achieving integrated management of air conditioning, lighting, and energy consumption.
• Remote sites: Mobile base stations, pump stations, and computer rooms, enabling cloud-based monitoring via 4G routers.
• Large venues: Stadiums and exhibition centers, enabling zoned control, cascading with the WEB-8000 central server.
• Laboratories/clean rooms: Linking multiple systems for temperature, humidity, pressure differentials, access control, and lighting.
• Smart homes: Villas or high-end apartments, integrating security, HVAC, energy, and lighting scenarios.

Ordering and Accessories
• WEB-600E: Basic mainframe (power supply not included)
• WEB-600E-US: US version, pre-installed with a North American power plug
• NPB-PWR-H: 24 V AC/DC DIN rail power supply
• NPB-PWR-UN-H: 90–263 V AC universal power supply
• DR-LONFT10-AX: LonWorks 78 kbps FTT-10A communication card
• NPB-SRAM: 256 MB memory upgrade (discontinued, firmware defaults to 256 MB)
• IO-16-H / IO-34-H: Local I/O expansion modules (DIN rail mountable, hot-swappable)
