| Place of Origin: | Germany |
| Brand Name: | Honeywell |
| Certification: | COO & COC |
| Model Number: | Poole BH170RZUK PART No. : 2108B2001N |
Honeywell Poole BH170RZUK PART No. : 2108B2001N Searchpoint Optima Plus Gas Detector
Product Overview
The BH170RZUK (Order Number: 2108B2001N), part of the Honeywell Searchpoint Optima Plus series, is a point-type infrared hydrocarbon gas detector designed specifically for industrial sites. It continuously monitors various combustible hydrocarbon gases, including methane, propane, and butane, within a 0-100%LEL range. It is suitable for explosive atmospheres in the oil and gas, chemical, pharmaceutical, and offshore platforms industries.
Core Advantages
• Accurate and Reliable: Utilizing dual-wavelength non-dispersive infrared (NDIR) technology, it achieves a long-term zero drift of <±1%LEL/year, eliminating the potential for poisoning and burnout associated with traditional catalytic sensors.
• Ultra-Fast Response: With a T90 of ≤ 4 seconds, it provides an alarm at the earliest sign of a gas leak, saving valuable time for emergency response. • Rugged and Durable: 316L stainless steel housing with IP66/67 + NEMA 4X protection, optional weatherproof dust cover and surge/heat shield, protects against salt spray, corrosion, high and low temperatures, and severe impact.
• Safety Certifications: ATEX / IECEx Ex d IIC T6…T4 Gb, compliant with EN 60079-0/1/31 standards; UL, FM, CSAus, CCCF, and marine certifications available.
• Intelligent Diagnostics: Built-in self-diagnostics monitor optical path blockage, drift, temperature, and voltage anomalies in real time, and output fault information via a 4-20 mA HART® digital signal or optional relay.
• Easy Maintenance: Zero and span calibration can be performed by one person without opening the cover; magnetic wand triggering or remote operation via a HART handheld communicator reduces downtime. Sensor modules can be quickly replaced in less than 5 minutes, reducing lifecycle costs.
Technical Specifications
Detection Principle: Dual-wavelength infrared absorption
Detected Gases: Methane (default calibration), propane, butane, and other hydrocarbons
Range: 0-100%LEL (configurable to 0-20%LEL, 0-50%LEL, etc.)
Output Signal:
• 4-20 mA (linear, HART 7 optional)
• RS-485 Modbus RTU (optional)
• 3 relays (alarm, fault, inhibit, optional)
Operating Voltage: 18-32 VDC, Typical Power Consumption: 3.5 W
Electrical Interface: 3 x M20 x 1.5 or ¾" NPT
Operating Environment: -40°C…+75°C; 0-99%RH (non-condensing)
Explosion-Proof: ATEX / IECEx Ex d IIC T6…T4 Gb
Protection Rating: IP66/67, NEMA 4X
Dimensions/Weight: 154 mm × 139 mm × 129 mm (without bracket); approximately 3.2 kg
Material: Housing: 316L stainless steel; Window: tempered glass
Ordering Information
2108B2001N: Standard hydrocarbon version, ATEX/IECEx certified, with dust cover.
Optional accessories: 2108D0275 surge/heat shield, 2108B0276 standard rain shield, 2108B0280 storm shield, remote calibration adapter, etc.
Typical Applications
• Offshore oil and gas production platform wellheads and compressor rooms
• LNG/LPG storage and transportation areas, filling stations, and refueling stations
• Petrochemical plant reactors, pump areas, and loading and unloading bays
• Biogas and landfill methane monitoring

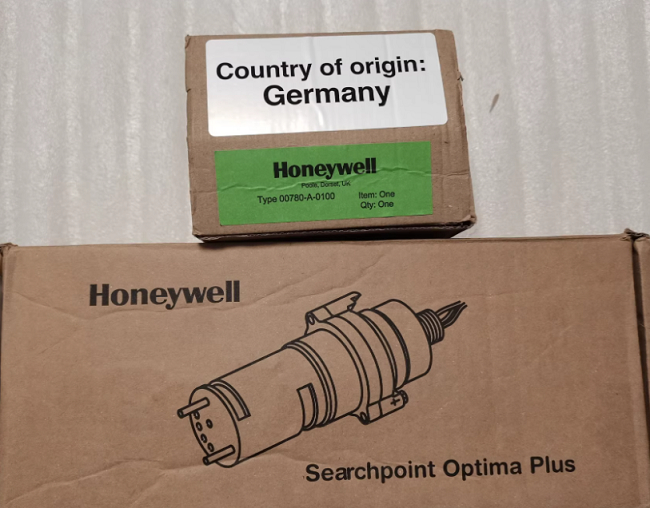

Product details pictures
