1. Overview of the Pepperl+Fuchs PVM58N-011AGR0BN-1213 514803

The PVM58N-011AGR0BN-1213 is a multi-turn absolute optical encoder from Pepperl+Fuchs' PVM58 series. Featuring an industrial-standard Ø58 mm housing and a solid shaft, it's designed for high-resolution, high-reliability applications. Its 30-bit total resolution (16-bit single-turn + 14-bit multi-turn) allows it to record 16,384 revolutions × 65,536 steps of absolute position, eliminating the need for batteries or mechanical gears for true multi-turn memory. Its PROFIBUS-DP interface supports 12 Mbit/s transmission rates, enabling direct connection to PLCs, DCSs, or motion control systems. It provides millisecond-level position and velocity feedback for industries such as mechanical engineering, logistics, wind power, and the chemical industry.
• Mechanical Construction: Available with servo or clamping flanges, a Ø10 mm solid shaft, 80 N radial load capacity, 40 N axial load capacity, and a maximum speed of 10,000 rpm. • Protection rating: IP65 (shaft end) / IP67 (housing), -40…+85°C operating temperature, 10 g vibration resistance, 100 g shock resistance, suitable for harsh environments such as dust, oil, and salt spray.
• Electrical interface: PROFIBUS-DP (RS-485) + programmable limit switches/speed output; power supply: 10…30 V DC, power consumption ≤ 1.5 W; M12 or cable gland outlet for easy field wiring.
• Diagnostic function: Built-in temperature, voltage, and communication online monitoring, LED status indication, support for fault self-diagnosis and remote parameter download.

2. Core Features:

1. Mechanical and Electrical Parameters
• Product Category: Multi-turn Absolute Photoelectric Rotary Encoder
• Housing Size: Ø58 mm industrial standard aluminum housing, IP65 (shaft end) / IP67 (housing)
• Shaft Specifications: Solid shaft Ø10 mm, radial load 80 N, axial load 40 N; maximum mechanical speed 10,000 rpm
• Flange Type: Clamping flange or servo flange available, mounting hole Ø65 mm (clamping flange)
• Resolution: 30 bits (single-turn 16 bits, 65,536 steps + multi-turn 14 bits, 16,384 turns), multi-turn memory without battery
• Output Interface: PROFIBUS-DP (12 Mbit/s), supports Class 1 & 2, capable of uploading velocity, acceleration, and diagnostic data
• Power Supply: 10…30 V DC, typical power consumption 1.5 W; M12 8-pin connector or terminal block output
• Environmental: -40… +85°C, vibration resistance 10 g (10…2000 Hz), shock resistance 100 g (6 ms)
2. Feature Highlights
Plug and Play: PROFIBUS-DP universal GSD file allows PLCs to read absolute position without additional programming.
Programmable Limit Switches: Two built-in programmable switch points can directly drive relays or PLC high-speed inputs, eliminating the need for external modules.
Speed ​​Output: In addition to absolute position, it can also output a 16-bit speed value from 0…32,767 rpm in real time, enabling dual functionality in a single device.
Online Diagnostics: LED status indication + PROFIBUS diagnostic byte, supporting wire break, reverse polarity, and overtemperature alarms.
3. Typical Applications
• High-bay warehouses: Absolute positioning of the vertical and horizontal axes of stacker cranes, eliminating zero return and improving storage and retrieval cycles.
• Wind turbine pitch control: The main controller reads pitch angle and speed via PROFIBUS, enabling closed-loop pitch control and safe emergency stops. • Chemical filling: High-speed filling turntable angle control in explosion-proof areas, 30-bit resolution guarantees ±0.1 mm filling accuracy.

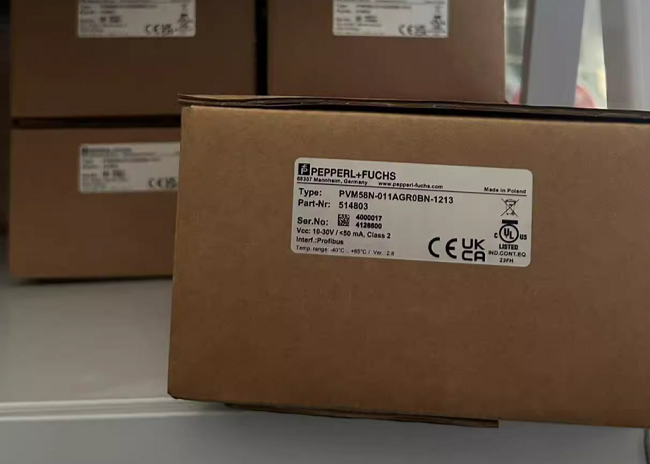

3.Product details pictures
