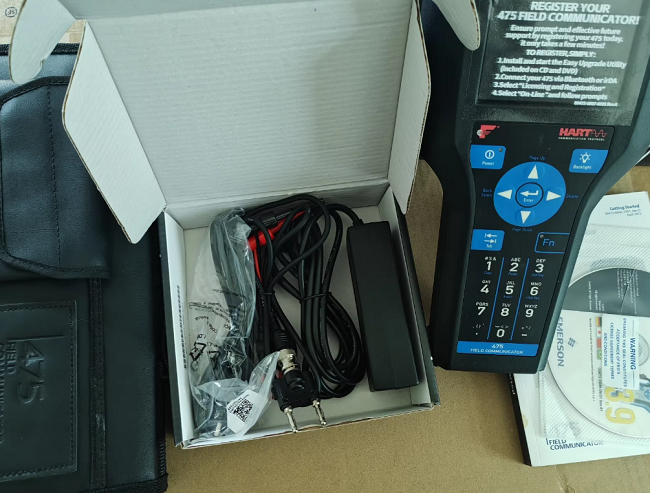

Emerson 475HP1ENA9GM9 475 Field Handheld Communicator Blgetooth Hart Communicators

Emerson 475HP1ENA9GM9 475 Field Communicator Blgetooth Hart Communicators Made in 2018

Product Overview
The Emerson 475 Field Communicator (Rosemount 475 Handheld Communicator) is an intrinsically safe handheld communicator designed for field technicians, enabling rapid configuration, diagnostics, and maintenance of HART, WirelessHART, and FOUNDATION Fieldbus devices. This model has been discontinued. Its official replacement is the AMS Trex Device Communicator, but existing units installed worldwide remain under warranty and technical support.

Features
Universal compatibility: Supports all manufacturers' registered HART (5/6/7) and FOUNDATION Fieldbus devices.
Full-color graphical interface: 3.5-inch 1/4 VGA transflective touchscreen, sunlight-readable. It works with ValveLink™ Mobile for advanced diagnostics such as valve signature and step response.
Long-life lithium-ion battery: Rechargeable lithium-ion battery provides 20 hours of continuous use, 40 hours of typical operating conditions, and 80 hours of standby time.
Field Hardening: Passes a 1-meter drop test into concrete, IP51 protection rating (front), operating temperature range -10°C to +50°C.
Online Upgrade: The Easy Upgrade Utility supports downloading the latest DD file via the internet, allowing system upgrades without returning to the factory.

Key Technical Specifications
• Processor: 80 MHz Hitachi SH3
• Memory: 32 MB RAM / 32 MB Flash
• Storage: 1 GB Secure Digital System Card
• Communication Interface: Three-pin 4 mm banana connector (common for HART/FF), IrDA 115 kbps, Bluetooth 10 m
• Weight: Approximately 0.75 kg (including battery)
• Charging: 100-240 VAC wide voltage input, standard US/EU/UK plugs.

Typical Application Scenarios
• Petrochemical: Field transmitter zero/span calibration and loop testing
• Power: Steam turbine valve positioner diagnostics and parameter optimization
• Pharmaceutical: Online configuration of FOUNDATION Fieldbus temperature and pressure modules
• Water treatment: Batch configuration and troubleshooting of wireless HART flowmeters.

Model and Ordering Information

Common suffix examples:
475HP1ENA9GM9 (Basic HART model)
475HP1EKLUGM9 (Intrinsically safe explosion-proof with three-year upgrade package)
475FP1EKLUGM9 (HART + FF dual protocol with three-year upgrade package)
For new project purchases, we recommend ordering the AMS Trex series (TREXCHPNAWS1, TREXLFPKL9S3, etc.) as a functional upgrade alternative.
