Siemens 6EP1333-3BA10 SITOP PSU200M 24VDC 5A Stabilized Power Supply

Siemens 6EP1333-3BA10 SITOP PSU200M 24VDC 5A Stabilized Power Supply

1. Overview of the Siemens 6EP1333-3BA10

The SITOP PSU200M model 6EP1333-3BA10 is a 120 W DIN rail switching power supply from Siemens. It converts a single-phase or two-phase 85–264 V AC wide-range input into a stable 24 V DC/5 A output. With an overall efficiency of up to 88%, a ripple of only 50 mV, and a load regulation accuracy of 0.1%, it provides a clean and reliable DC bus for industrial field devices such as PLCs, HMIs, sensors, and actuators.

Enclosed in a compact 70 × 125 × 121 mm metal housing, this power supply operates at full load in an ambient temperature range of –25°C to +70°C without requiring side heatsink clearances. A built-in potentiometer allows fine-tuning of the output between 24–28.8 V to compensate for line voltage drops. A green "24 V OK" LED and relay contacts are integrated on the front panel, providing real-time power status reporting and facilitating remote diagnostics via a host computer.

2. Core Features:

1. Key Parameters
• Model: 6EP1333-3BA10 (SITOP PSU200M Series)
• Input voltage: Single-phase/two-phase AC 85–264 V (47–63 Hz), short-term maximum of 550 V; DC 110–300 V also accepted
• Output: 24 V DC / 5 A, continuous power 120 W, adjustable range 24–28.8 V
• Peak power: 3 × rated current (15 A) within 25 ms; 150% rated current (7.5 A) within 5 s/min
• Efficiency/loss: Typical efficiency 88%; no-load loss ≤ 4 W, full-load loss ≈ 17 W
• Ripple: ≤ 50 mVpp (20 MHz bandwidth)
• Regulation accuracy: ±15% for input voltage or load steps Output voltage deviation ≤ 0.1%
• Operating temperature: –25°C … +70°C, > 60°C with linear derating of 4%/K
• Dimensions and weight: 70 × 125 × 121 mm (W × H × D), approximately 0.6 kg
• Protection rating: IP20; terminal block connection, DIN rail mounting
• Certifications: CE, cULus, CB, ATEX, IECEx, GL, ABS, SEMI F47, etc.

2. Main Features
Wide Voltage Adaptation: Plug-and-play compatible with global power grids, supporting 120 V, 230 V, 400 V, and two-phase 500 V systems.
Power Boost & Extra Power: Instantaneously delivers 15 A (25 ms) or 7.5 A (5 s) to start motors, relays, or capacitive loads, eliminating the need to increase power supply capacity. Intelligent Protection: Five levels of protection: short circuit, overload, overvoltage, overtemperature, and undervoltage (brownout); user-selectable short-circuit response modes: constant current limiting or latching shutdown.
Remote Monitoring: A green "24 V OK" LED and relay dry contacts (60 V/0.3 A) on the front panel enable real-time power status alarms via PLCs and SCADA systems.
Parallel Redundancy: Supports parallel operation with two units for current sharing, and can be upgraded to 1+1 hot standby with an external redundancy module, improving system availability.
Compact Heat Dissipation: The metal housing utilizes natural convection, eliminating the need for heat dissipation gaps on either side and saving cabinet space.

3. Typical Applications
• Factory Automation: Provides a 24 V bus for PLCs, HMIs, inverters, and distributed I/O.
• Process Control: In chemical and water treatment applications, ATEX/IECEx certification allows for direct installation in Zone 2 explosion-proof areas. • New Energy and Transportation: Wide-voltage input ensures continuous operation in scenarios with severe power grid fluctuations, such as photovoltaic power plants and electric bus charging stations.
• High-end Equipment: Five-axis machining centers, SMT placement machines, and other precision equipment utilize low ripple and Power Boost features to improve machining accuracy and equipment life.

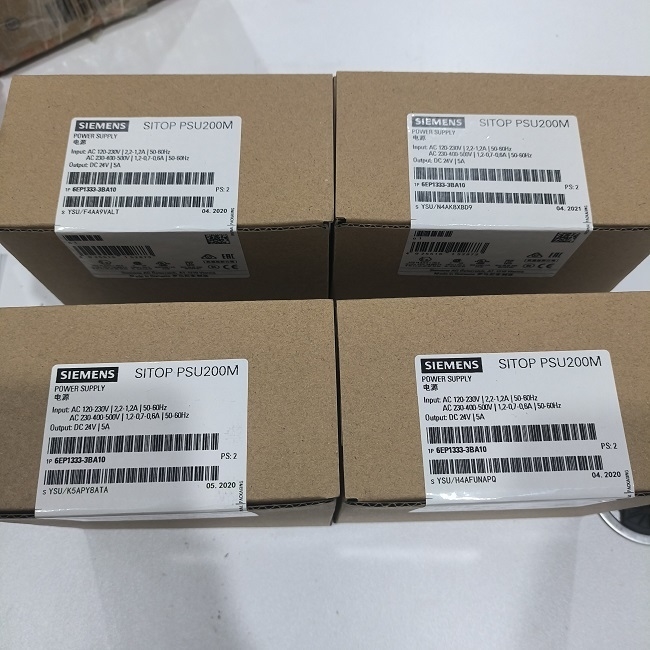

3. Product details pictures
