Schneider Electric 9012GAW5 Industrial Grade Pressure Switch 30–275 Psi IP65

Schneider Electric 9012GAW5 Industrial Grade Pressure Switch 30–275 Psi IP65

Product Highlights
The 9012GAW5, part of the Class 9012 Type GAW series, is a NEMA 4/13 pressure switch designed by Schneider Electric for global industrial applications. It achieves ±2% repeatability within a range of 30–275 psi, ensuring safe, efficient, and energy-efficient operation of critical equipment such as compressors, pumps, and hydraulic stations.

I. Core Parameters
• Model: Schneider Electric 9012GAW5
• Range: 30–275 psi (2.1–19 bar)
• Repeatability: ±2% of full scale
• Switching Logic: SPDT (1 C/O contact), 10 A @ 250 VAC
• Enclosure Rating: NEMA 4 & 13 / IP65, oil-proof, dust-proof, and water-jet-proof
• Wetted Materials: 316L stainless steel bellows, compatible with water, oil, and non-corrosive gases
• Electrical Connection: 3/4" NPT female conduit entry, terminal block wiring
• Mechanical Life: ≥ 1 million cycles
• Certifications: UL, cULus, CE, RoHS, compliant with IEC 60947-5-1

II. Typical Application Scenarios
1. Air Compressor System: Automatic start-stop control to prevent overpressure.

2. Industrial Pump: Dry-run protection to extend pump life.

3. Injection Molding Machine Hydraulic Station: Real-time pressure monitoring to ensure molding accuracy.

4. HVAC Chiller: High and low pressure alarms and coordinated shutdown.

III. Why Choose 9012GAW5
• Brand Endorsement—Schneider Electric's 180+ years of industrial experience and a global service network in over 100 countries.
• Designed for Harsh Environments—A wide operating temperature range of -30°C to +70°C, and fully tested for salt spray, vibration, and shock.
• Easy Installation—Top adjustment screws with anti-error locking and factory default settings ensure immediate installation and operation.
• One-Stop Supply—Global inventory, shipping within 48 hours; EcoStruxure™ Machine Expert provides digital commissioning support.

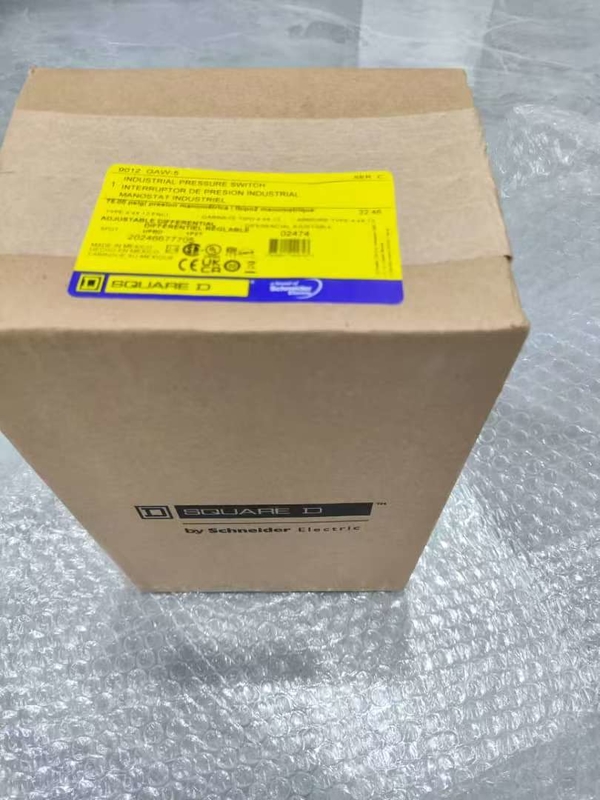

Product details pictures
