Home > products >
ABB Spare Parts
>
ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67
  • ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67
  • ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67
  • ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67
  • ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67
  • ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67

ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67

Product Details:
Place of Origin: Finland
Brand Name: ABB
Certification: COO & COC
Model Number: ZINT-7B1C+N8205
Detail Information
Place of Origin:
Finland
Brand Name:
ABB
Certification:
COO & COC
Model Number:
ZINT-7B1C+N8205
Model Type:
ZINT-7B1C+N8205
Product ID:
3AXD50000024379
Description:
Non-Rated BCU SP MC Interface Board
Net Size Of Product:
30.0× 25.5×3.5 Cm
Shipping Weight:
2.0 Kg
Warranty:
One Year
Condition:
Brand New In Original Packaging
Express Delivery:
DHL, FedEx, UPS
Trade Terms:
EXW, DAP, FOB, CIF
Highlight:

High Light

Highlight:

ABB ZINT-7B1C+N8205

,

IP67 ABB MC Interface Board

,

Non Rated BCU SP MC Interface Board

Trading Information
Minimum Order Quantity:
1 pc
Price:
$666-777
Packaging Details:
Branded carton packaging
Delivery Time:
3-5 days
Payment Terms:
T/T,Alipay,Paypal
Supply Ability:
99+
Product Description

ABB ZINT-7B1C+N8205 Non-Rated BCU SP 3AXD50000024379 MC Interface Board



Product Overview
The ABB ZINT-7B1C+N8205 is a factory-tested upgrade kit that combines the latest ZINT-7B1C arc-flash relay with the N8205 high-sensitivity light and current sensor module. Designed for retrofit or new-build medium-voltage (≤ 40.5 kV) metal-clad and air-insulated switchgear, this plug-and-play solution detects arcing faults in < 2 ms and trips the upstream breaker to minimize equipment damage and personnel risk.
Key Features
• ZINT-7B1C Main Unit
– 10 light + 2 current inputs per unit; expandable to 30 light points via fiber loops
– Selective zone tripping with configurable I/O (trip, alarm, lockout)
– SIL 2 / PL c certified; meets IEC 61850-9-2LE for digital substations
– Wide power supply 24–250 V AC/DC, dual hot-standby inputs
• N8205 Sensor Module
– Combined point light sensor (1.5 ms response) and split-core CT (5 A secondary)
– IP67 aluminum housing; –40 °C … +85 °C operating range
– Pre-terminated fiber-optic pigtail (2 m, 62.5/125 µm) for plug-and-play wiring
• System Benefits
– Reduces arc-flash incident energy up to 90 %
– Retrofit kit includes DIN-rail brackets, fiber jumpers, labels, and commissioning wizard software
– Front-panel USB port and web server for diagnostics, event log download (SD card)
– CE, UL 508, cULus, EAC, RoHS, REACH compliant
Typical Applications
• 3.3 kV – 40.5 kV switchboards, motor-control centers, wind-farm transformers
• Arc-fault mitigation in data centers, oil & gas, mining, and chemical plants
• Integration with ABB Relion® relays and ABB Ability™ Condition Monitoring
Ordering Information
• Complete Kit Part No.: ZINT-7B1C+N8205
• Contents: 1× ZINT-7B1C relay, 2× N8205 sensors, 2× fiber jumpers, mounting kit, commissioning guide
• Extended warranty and ABB ServiceGuard coverage available



Product Images

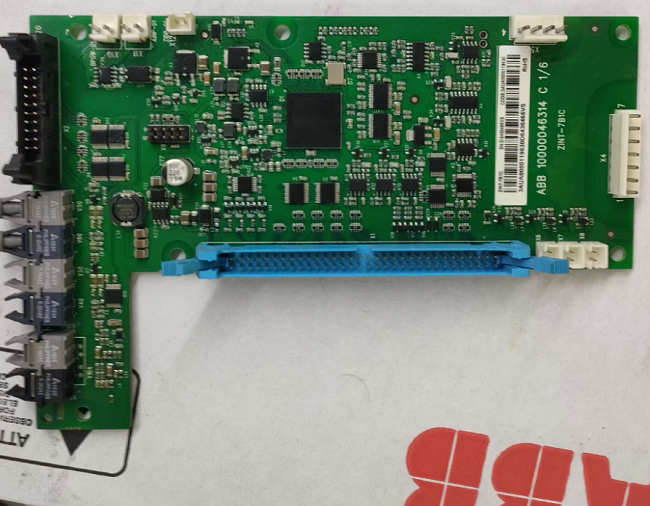

ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67 0

ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67 1

ABB ZINT-7B1C+N8205 Non Rated BCU SP 3AXD50000024379 MC Interface Board IP67 2



Related Products

ZINT-7B1C 3AXD50000004365 N8205 3AXD50000030408
ZINT-12C 3AXD50000004366 ZINT-5B1C 3AXD50000004364
BINT-7B1C 3AXD50000004367 BINT-12C 3AXD50000004368
NRED-61C 3AXD50000030409 APOW-12C 3AXD50000030410
SD821 3BSC610037R1 SD822 3BSC610038R1
AO895 3BSC690087R1 AI895 3BSC690086R1
DI890 3BSC690074R1 DO890 3BSC690075R1
UNS0867 3BHE024747R0001 UNS0867A-P 3BHE024747R0101
FPBA-01 3AFE68573271 FENA-11 3AUA0000067001
RDCO-01C 3AFE64693232 SDCS-PIN-51 3ADT220090R0001
