Yokogawa YHC4150X Handheld Protable Field HART Communicator With Intrinsically Safe certification
Product Overview
The Yokogawa YHC4150X is a rugged, intrinsically-safe handheld communicator engineered to configure, diagnose and calibrate every HART-enabled field device—transmitters, valves, flowmeters and actuators—directly at the process point. With full support for Universal, Common-Practice and Device-Specific commands, it streamlines start-up, troubleshooting and documentation tasks, eliminating the need to return devices to the workshop.
Key Specifications
• Display & Interface
– 2.1" 128 × 128-pixel backlit graphic LCD (13 lines)
– Membrane keypad: 4 soft keys, 30 dual-function keys, 3 thumb keys for one-hand navigation
• Connectivity
– Standard banana jacks with supplied HART test leads and 250 Ω resistor
– RS-232 port via included dongle for firmware/Download-of-Files (DOF) updates without leaving the field
• Power & Runtime
– 6× AA alkaline batteries (included) provide 60 h continuous use (backlight off)
– Optional 100–240 VAC universal adapter for bench-top use
• Environmental & Safety
– Operating: –5 °C to +50 °C; Storage: –40 °C to +60 °C
– IP-rated ABS case with anti-shock protective boot
– Intrinsically Safe: ATEX Ex ia IIC T4, cULus Class I Div 1 Groups A–D T4
• Memory & Software
– Stores 200+ device configurations off-line
– Clone/Upload/Download configurations via DPC Manager utility (Windows)
– 3-year DOF subscription keeps firmware and device descriptors current
Typical Applications
• Commissioning pressure, temperature, level and flow transmitters
• Loop testing and trim calibration on Yokogawa, Emerson, ABB, Endress+Hauser devices
• Re-ranging smart positioners and control valves during batch changeovers
• As-found/As-left documentation for regulatory compliance (FDA, EPA, IEC 61511)

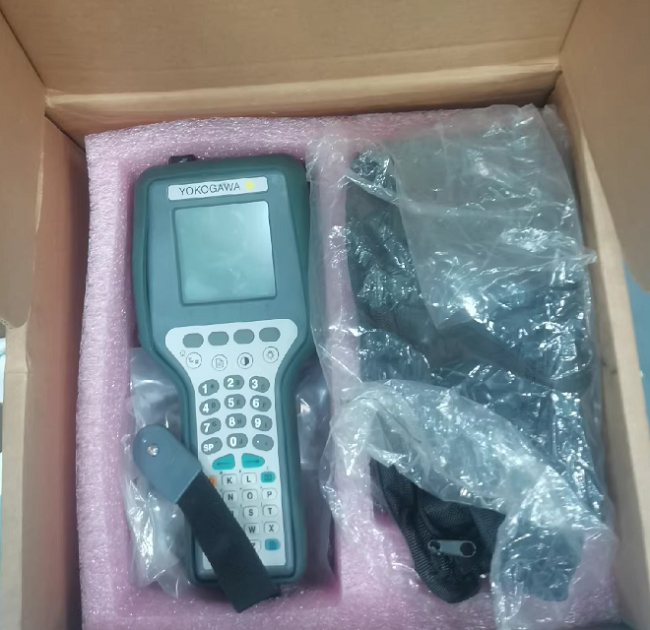

What’s in the Box
YHC4150X handheld, HART test lead kit, 250 Ω resistor, RS-232 cable, AC adapter/dongle, soft carrying case, shoulder strap, six AA alkaline batteries, user manual & DPC Manager CD.
Part Number & Ordering
• Base model: YHC4150X-01 (includes 3-year DOF subscription)
• Optional accessories: spare test leads (A900529-00014), protective boot (4150-7G), USB-to-serial converter (1078)
