Siemens 3RG4041-6KD00 129258 SIMATIC PXI340 Proximity Switch Sensor With ABS Housing

Siemens 3RG4041-6KD00 129258 SIMATIC PXI340 Proximity Switch Sensor Inductive

1. Overview of the Siemens 3RG4041-6KD00 129258

The Siemens 3RG4041-6KD00 is an inductive proximity switch. Its flat, 40 × 40 mm ABS housing fits comfortably in the palm of your hand, yet it accurately detects any metallic target within a 20 mm sensing distance. Its two-wire design reduces wiring from three to two conductors, saving 30% on-site installation time. Utilizing a dedicated ASIC, it offers a wide-range 15–34 V DC power supply and 0.2 A output current, enabling direct driving of small relays and seamless integration into PLC input modules, enabling true "plug-and-measure" functionality.

2. Core Features:

• Model: 3RG4041-6KD00 (SIMATIC PXI340 Series)
• Sensor type: Inductive proximity switch
• Sensing method: Non-flush
• Rated sensing distance: 20 mm
• Supply voltage: 20…320 V DC / 20…265 V AC, 50/60 Hz (2-wire)
• Output type: Normally open (NO) or normally closed (NC) (wiring selectable)
• Rated output current: 300 mA (continuous)
• Voltage drop: ≤ 8 V (typical)
• Response frequency: ≤ 25 Hz
• Repeatability: ≤ 5% Sn
• Ambient temperature: -25 … +70°C
• Protection rating: IP65 (IEC 60529)
• Housing dimensions: 40 × 40 × 118 mm (square ABS)
• Connection method: Terminal block, M20 × 1.5 Cable gland included
• Certifications: CE, UL, CSA

Ultra-wide voltage power supply: 20 V–320 V DC/AC, compatible with all power grids worldwide.
2-wire design: Wiring is reduced from 3 to 2 conductors, saving 30% installation time.
NO/NC switchable: The same terminal can be wired to switch between normally open and normally closed logic, allowing for flexible field configuration.
Strong anti-interference: Built-in surge, short-circuit, and reverse polarity protection, meeting industrial grade III EMC standards.
Status indicator: A dual-color LED on the top provides real-time indication of "target in/out."

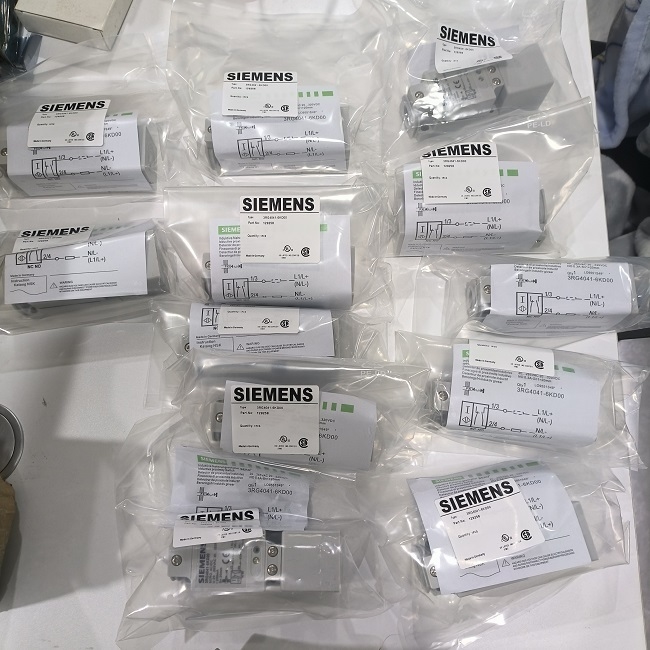

3.Product details pictures
