Siemens 7ML1118-0CA30 EchoMax XPS-15 Ultrasonic Level Transducer 15M Range

Siemens 7ML1118-0CA30 EchoMax XPS-15 Ultrasonic Level Transducer 15M Meter Range

Product Highlights
Reliably measures the level of liquids and solids within a range of 15 m. This non-contact ultrasonic solution is designed specifically for steam, chemical corrosion, and explosion-proof environments.

Product Highlights
• Non-contact, continuous measurement: Avoids media contamination and mechanical wear.
• 15 m ultra-high range: Covers most tank and silo applications.
• Steam and corrosion resistant: PVDF housing with IP68 protection makes it suitable for harsh operating conditions such as chemical, wastewater, and power plants.
• Flange-free mounting: Direct installation via 1" NPT thread saves time and money.
• Global explosion-proof certifications: ATEX, IECEx, UKEX, FM Class I Div.2 / Class II Div.1, ensuring safe operation in hazardous areas.
• Wide operating temperature range: -40°C to +95°C, suitable for extreme climates.
• 10 m standard cable: Plug-and-play, reducing on-site wiring effort.

Technical Parameters
• Measurement Principle: Ultrasonic (42 kHz)
• Measuring Range: 0.25 to 15 m (liquids/solids)
• Output: Connects to Siemens LUT400, SITRANS LU series controllers, or other compatible transmitters
• Process Connection: 1" NPT (ANSI/ASME B1.20.1)
• Housing Material: PVDF
• Protection Rating: IP68 / NEMA 6P
• Cable Length: 10 m shielded PUR cable
• Certification: ATEX II 2GD Ex mb IIC T4 Gb / Ex tb IIIC T135°C Db
• Origin: Canada

Typical Applications
• Chemical feed tank level monitoring
• Sludge level measurement in wastewater treatment plant digesters
• Limestone slurry level control in power plant desulfurization plants
• Level monitoring in grain/plastic pellet silos

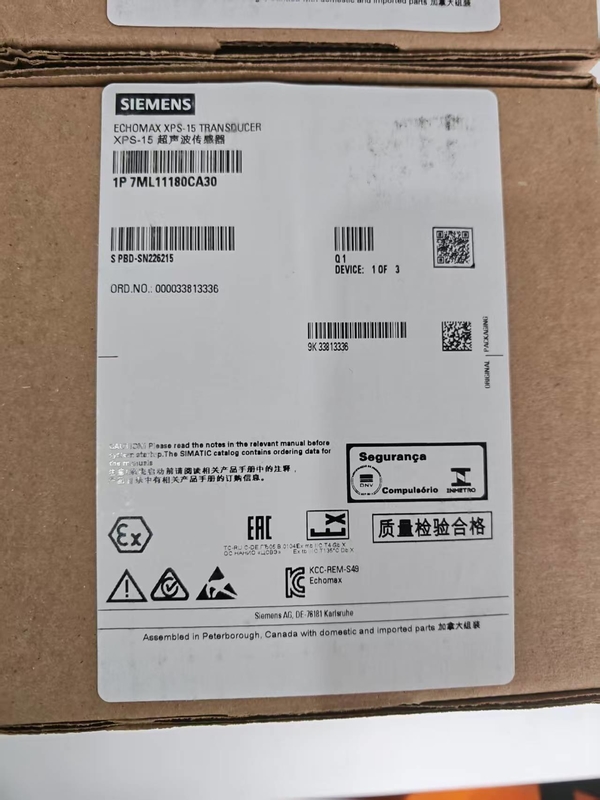

Product details pictures
