Siemens 6ES7222-1HH32-0XB0 SIMATIC S7-1200 Digital Output Module 16DO 2A

Siemens 6ES7222-1HH32-0XB0 SIMATIC S7-1200 Digital Output SM 1222 Module 16DO 2A

Product Overview
The Siemens 6ES7222-1HH32-0XB0 is a digital output module designed specifically for industrial automation control systems. It belongs to the Siemens SIMATIC S7-1200 series. With its high reliability and stability, this module is widely used in various industrial scenarios and can meet diverse control needs.

Technical Parameters
- Number of Output Points: 16 points, capable of simultaneously controlling multiple external devices.
- Output Type: Relay output, suitable for a variety of loads, including motors, contactors, and solenoid valves.
- Rated Load Voltage: Supports multiple voltage levels, including DC 24V and AC 220V.
- Output Current: Rated output current per point is 2A for resistive loads, 30W for DC, and 200W for AC for lighting loads.
- Switching Time: Maximum switching time from "0" to "1" and from "1" to "0" is 10ms.
- Signal Status Display: Each output point is equipped with an LED indicator for real-time monitoring and troubleshooting.
- Module Dimensions: Approximately 90mm × 100mm × 81mm, compact design saves installation space.
- Weight: Approximately 0.367kg, easy to install and maintain.
- Operating Environment: Ambient temperature range is -20°C to 60°C, with relative humidity up to 95%, providing strong adaptability.
- Protection Rating: IP20, protecting against dust and water droplets.

Features
- High Reliability: The specially designed relay contacts withstand frequent on-off cycles and have a long service life.
- Electrical Isolation: Excellent electrical isolation prevents external interference signals from entering the PLC system.
- Diagnostic Functions: Supports diagnostic functions such as overcurrent protection and short-circuit protection, enabling timely output shutdown and sending diagnostic information.

Application Scenarios
This module is widely used in industries such as manufacturing, building automation, transportation, energy, and water treatment. For example, in the manufacturing industry, it can be used to control the start and stop of motors, the operation of conveyor belts, and the action of solenoid valves on production lines; in the field of building automation, it can be used to control lighting systems, air-conditioning systems, and elevator control circuits.

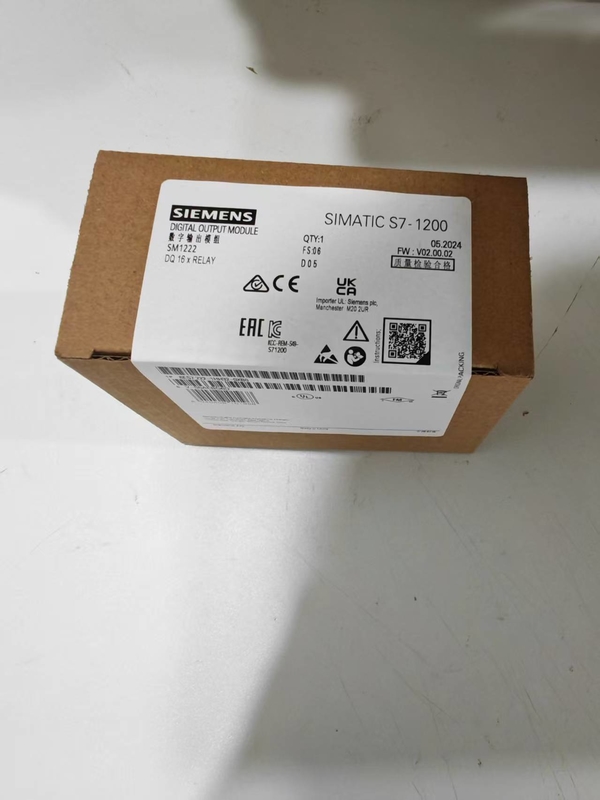

Product details pictures
