Siemens 6ES7307-1BA01-0AA0 SIMATIC S7-300 Regulated Power Supply Module PS307

Siemens 6ES7307-1BA01-0AA0 SIMATIC S7-300 Power module Regulated power supply PS307

Product Overview
This power supply module has an input voltage range of AC 120/230 V with automatic switching, an output voltage of 24V DC, and a rated output current of 2A. It uses a single-phase AC power input with a wide input voltage range, adapting to varying power grid conditions and ensuring stable operation in various environments.

Technical Parameters
- Input voltage: AC 120/230 V, with an input voltage range of 85-132 V or 170-264 V.
- Rated current: 0.9A at 120V input, 0.5A at 230V input. - Output voltage: 24V DC, total tolerance ±3%, static line compensation approximately 0.1%, static load compensation approximately 0.2%.
- Residual ripple: Maximum 50mVpp, typical less than 5mVpp.
- Short-circuit protection: Electronic short-circuit protection, non-latching, with a trip level of 1.1 to 1.3 times the rated current.
- Overload protection: Maximum overload current is 22A, with a duration of less than 3ms.
- Efficiency: At rated output voltage and current, efficiency is 87%, with a power consumption of 138W.

Application Scenarios
The 6ES7307-1BA01-0AA0 is widely used in industrial automation systems, providing stable power support for PLC control cabinets, sensors, actuators, and other equipment. It ensures normal operation of equipment in complex industrial environments and reduces equipment failures caused by power supply issues.

Advantages
- High stability: Stable output voltage with precise voltage regulation ensures stable power supply for equipment under varying loads. - High Reliability: Equipped with overload and short-circuit protection, it automatically shuts off power in abnormal situations, protecting equipment from damage.
- Strong Compatibility: Fully compatible with Siemens S7-300 series PLC systems, it's easy to install and integrate.

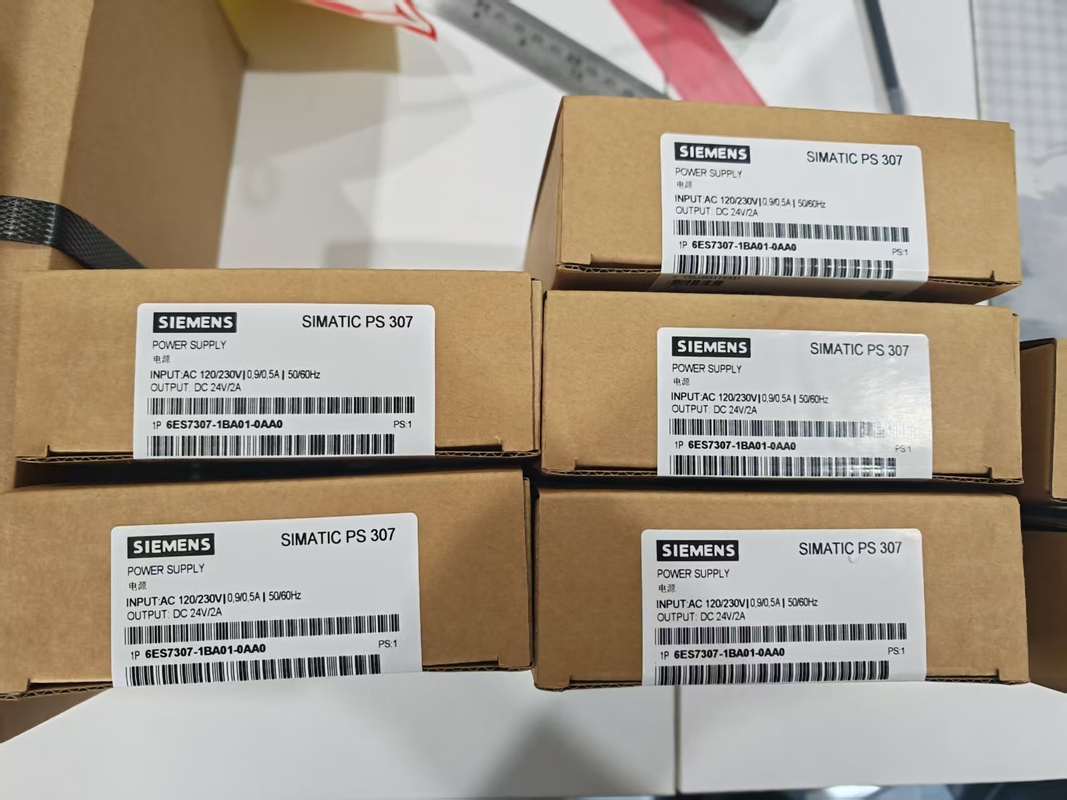

Product details pictures
