Pilz 773100 PNOZ m 1p 24VDC Programmable Safety Controller
1. Overview of the Pilz 773100 PNOZ m 1p
The Pilz 773100 (model PNOZ m1p base unit) is a high-performance programmable safety controller designed for safety-critical control in industrial automation systems. Its core configuration includes 20 digital input interfaces and 6 diversified outputs (including 4 semiconductor outputs, 2 Category 2 relay outputs, and 1 Category 4 high-safety relay output). 124 It supports 24V DC power supply, consumes only 8W, and has an operating temperature range of 0-60°C, making it suitable for harsh industrial environments. 13 It adopts DIN rail mounting (dimensions 135×94×121mm). The compact structure saves control cabinet space and allows expansion of up to 8 modules to meet complex system requirements.
2. Core Features:
• Inputs/Outputs:
– 20 safe digital inputs
– 4 safe semiconductor outputs (2 A, 24 VDC)
– 2 safe relay outputs (2 normally open, 6 A, Category 2)
– 1 cascade output, expandable to 256 distributed stations
• Power supply: 24 VDC ±20%, typical power consumption 8 W
• Dimensions/Weight: 135 × 94 × 121 mm, net weight approximately 499 g
Modular Expansion
Supports up to eight expansion modules (such as the input module 773400 and the communication module 773721), allowing flexible adaptation to complex system requirements.
Communication Interface
RS232 interface: For connecting to a PC configuration tool (PNOZ m1p software) for logic programming and parameter adjustment.
Optional Ethernet interface version (such as the PNOZ m1p ETH) supports remote diagnostics and data exchange.

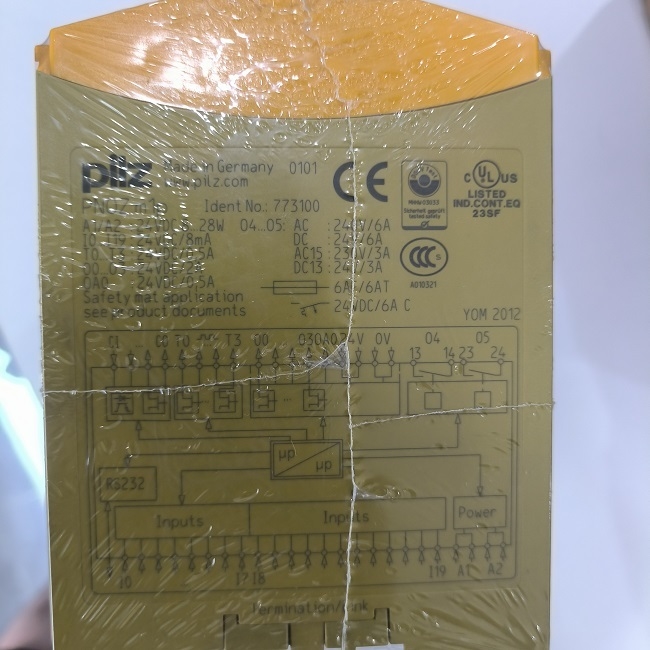

3. Product details pictures
