| Place of Origin: | Germany |
| Brand Name: | ABB |
| Certification: | COO & COC |
| Model Number: | 1SVR011700R0000 CC-E/STD |
ABB 1SVR011700R0000 CC-E/STD Signal Converter Univers 24VDC Module
1. Overview of the ABB 1SVR011700R0000 CC-E/STD
The ABB 1SVR011700R0000, a universal analog signal converter from the CC-E/STD series, features a compact DIN rail mount design and requires only 24 VDC power. Side-mounted DIP switches allow for easy switching between eight common input/output ranges, including 0–10 V, 0–20 mA, and 4–20 mA. A pre-mounted potentiometer allows for quick adjustment of gain and zero point settings. A green LED provides real-time power status indication, making maintenance intuitive and convenient.
2. Core Features:
Series: CC-E/STD Universal Analog Signal Converter
• Input Signal: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA (four selectable ranges)
• Output Signal: 0–10 V or 4–20 mA (two selectable ranges)
• Conversion Accuracy: ±0.5% FS (12-bit ADC, long-term drift <0.1%)
• Power Supply: 24 V DC (power consumption <2 W)
• Electrical Isolation: 2.5 kV AC isolation across three terminals: input, output, and power
• Operating Environment: –40°C … +85°C, IP20, DIN rail mountable
• Dimensions: 76 mm × 33 mm × 110 mm, Weight: 0.15 kg
The module features built-in three-terminal electrical isolation with an isolation voltage of up to 1.5 kVAC, effectively suppressing ground loops and common-mode interference. ±0.5% conversion accuracy ensures stable and reliable signals even after long-distance transmission. Industrial-grade components and a wide operating temperature range of -20°C to +60°C ensure long-term trouble-free operation in harsh environments such as dust, vibration, humidity, and heat.

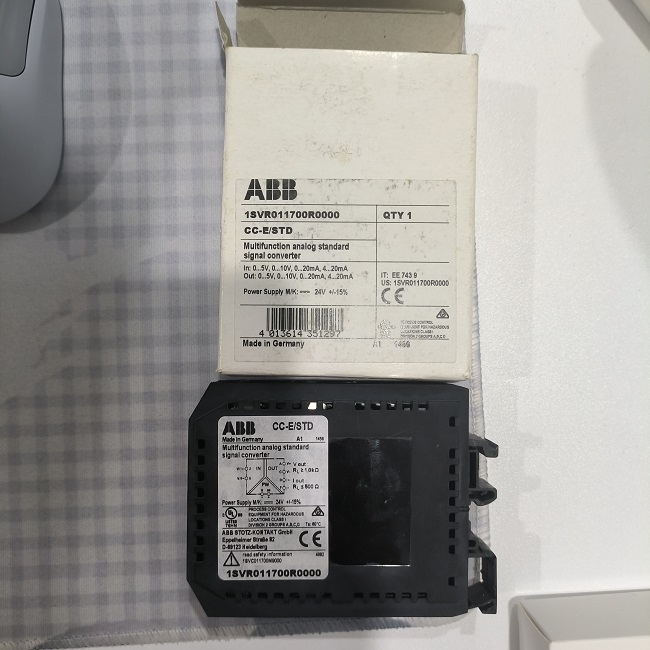

3. Product details pictures
